01–Work Surface
.................................
Qty. 1
.......................
(see below)
24" Wide Work Surface
(FY2429zz/xx3)
...........
100-6431-00
30" Wide Work Surface
(FY3029zz/xx3)
...........
100-6440-00
36" Wide Work Surface
(FY3629zz/xx3)
...........
100-6535-00
02– Fit Small Support Y
....................
Qty. 1
...................
225-2015-00
03– 22.875" Vertical Legs
.................
Qty. 4
...................
125-5213-00
04– 21" Base Tubes
..............................
Qty. 2
..................
125-5275-00
05– Cross Tubes
................................
Qty. 2
.......................
(see below)
24" Wide Base Tube
(FY2429zz/xx3)
...................
125-5218-00
30" Wide Base Tube
(FY3029zz/xx3)
...................
125-5219-00
36" Wide Base Tube
(FY3629zz/xx3)
...................
125-5220-00
06– Insert Screws
.................................
Qty. 4
...................
325-5052-00
07– 2" Large End Caps
.......................
Qty. 4
...................
175-5157-00
08– 3" Locking Casters
......................
Qty. 2
...................
150-5053-00
09– Caster Inserts
...............................
Qty. 4
...................
525-5032-00
10–
5
/
16
"-18 Fit
Bolts
............................
Qty. 8
...................
325-5194-00
11– Fit
Tube Washers
.........................
Qty. 8
..
225-2050-00 or 225-3522-00
Component part list for part #’s
FY2429zz/xx3, FY3029zz/xx3, FY3629zz/xx3
12– 3" Non-Locking Casters
...........
Qty. 2
...................
150-5052-00
13–
3
/
4
" Wood Screws
.........................
Qty. 8
...................
325-5106-00
14– Fit Small Support X
....................
Qty. 1
...................
225-2014-00
15– Support Screws
............................
Qty. 8
...................
325-5010-00
16– Back Trough
....................................
Qty. 1
.......................
(see below)
24" Wide Back Trough
(FY2429zz/xx3)
..............
225-2289-00
30" Wide Back Trough
(FY3029zz/xx3)
..............
225-2290-00
36" Wide Back Trough
(FY3629zz/xx3)
..............
225-2291-00
17– 1.5" Small Caps
.............................
Qty. 4
...................
175-5156-00
18–
1
/
4
"-20 Button Head Screws
....
Qty. 4
...................
325-5003-00
All Screw quantities listed here are the minimum needed
for your Utility Unit assembly. There may be a few extra
Screws included, which are not counted in the Parts List.
Anthro
Corporation Technology Furniture
®
10450 SW Manhasset Drive Tualatin, Oregon 97062 anthro.com
SAVE THESE INSTRUCTIONS!
Rev. D January 2006
Step 7
Attaching the Base Assembly to the Legs
Align the Base Assembly on the Legs as shown. Secure
the Base Assembly to the Legs by inserting a Bolt through
Tube Washer and attach loosely.
Repeat for the remaining three Bolts, then tighten all the
fasteners (see steps 2 and 4).
Step 8
The Final Step
Carefully rotate your Utility Unit onto its Casters.
Insert the four 1.5" End Caps into the Legs.
Congratulations!
Your assembly is complete.
1-800-325-3841
Hello!
Thank you for choosing Anthro.
Before beginning assembly of your
Utility Unit, please take a moment to
review the parts listed below to verify
that your shipment is complete.
Please review the assembly
instructions of all Anthro products
you purchased and are planning to
include in this installation prior to
beginning this assembly.
To make the assembly of your Utility
Unit even easier, p1-we have included all
of the required tools. The handy Hex
Driver Bit can be used in your electric
drill in place of the Hex Driver.
Hex Driver
5
/
32
"
...........
375-5000-00
Hex Driver Bit
5
/
32
"
.....
375-5003-00
8 oz. Rubber Mallet
.....
375-5022-00
Questions?
1-800-325-3841
(
5
/
16
"-18 X 3.5”) Fit Bolt
325-5194-00
Fit
Tube Washer
225-2050-00 or 225-3522-00
06
05
01
12
14
16
10
1.5" Small End Cap
Fit Bolt
Fit Tube
Washer
Cross Tube
24"/30"/36" wide Utility Unit

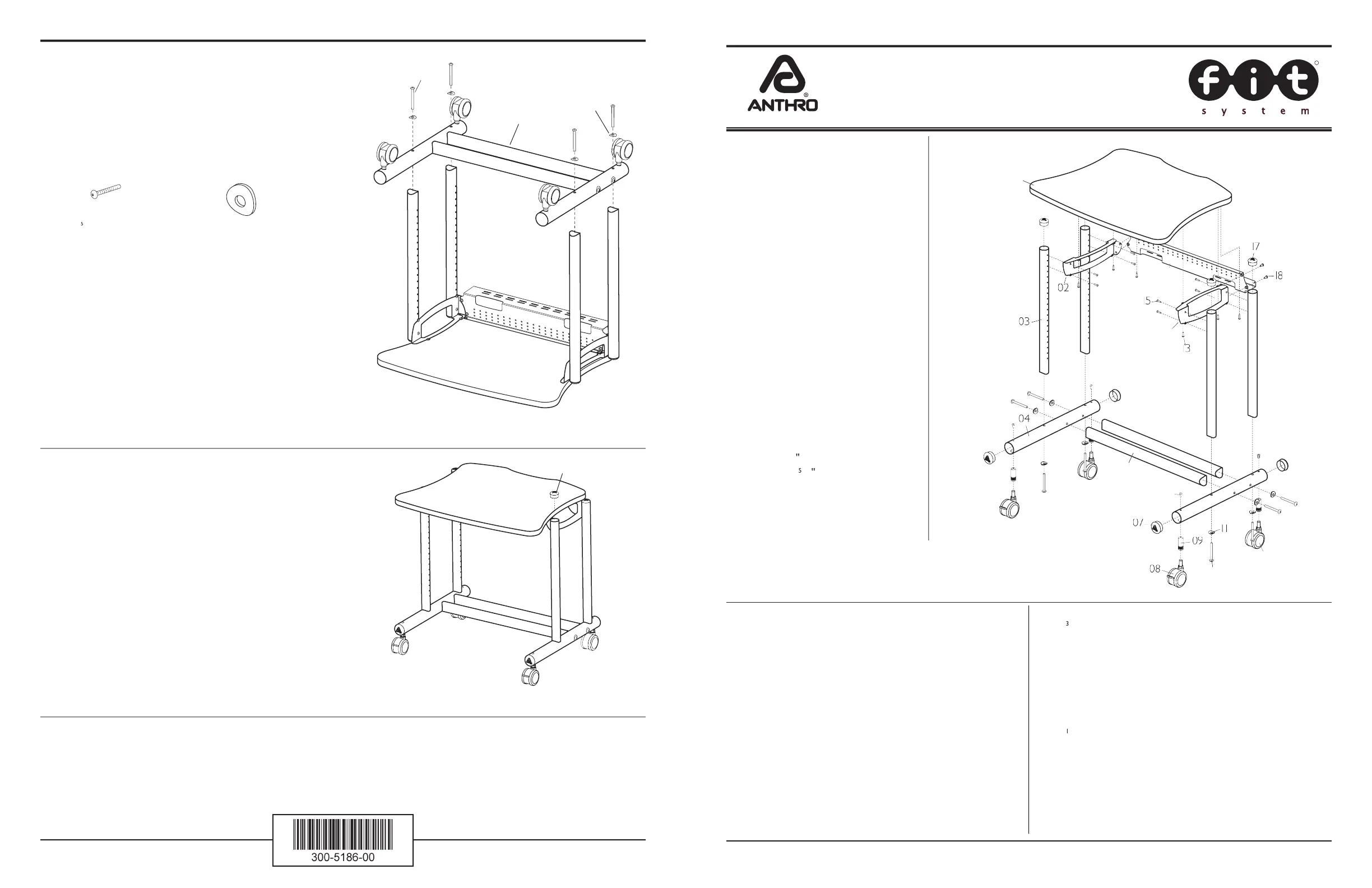

Assembly Instructions
Detailed views of all Hardware are provided
with each Assembly Step.
Please return the enclosed Registration Card to receive our product updates, new catalogs, and
sale fl yers; you’ll be entered to win our monthly drawing of $300.00 of Anthro products!
