ASSEMBLY INSTRUCTION

Item#:5751-75411-95Shield-Back Side Chair

** Please make sure you have all parts indicated below prior to assembly.

Assembly Steps:

There are two K/D chairs in one box. Please follow numbers on one chair and letters on the other chair

during assembly.

1.Place chair back (G) on a clean surface.

2.Tighten seat frame (I) to chair back (G) by using bolt (C), lock washer (B) and flat washer (A) at the

center location. (see diagram 1) Then tighten seat frame (I) to chair back (G) by using bolts (E),

lock washers (B), flat washers (A)at corner . (See diagram 1)

3.Please follow numbers on legs (F) and corner blocks. Assemble front legs (F) onto front corner

blocks of seat frame (I), using bolts (E), lock washers (B) and flat washers (A). Tighten all bolts by

hand. (See diagram 1)

4.After all bolts are attached and hand tightened, turn the chair upright.

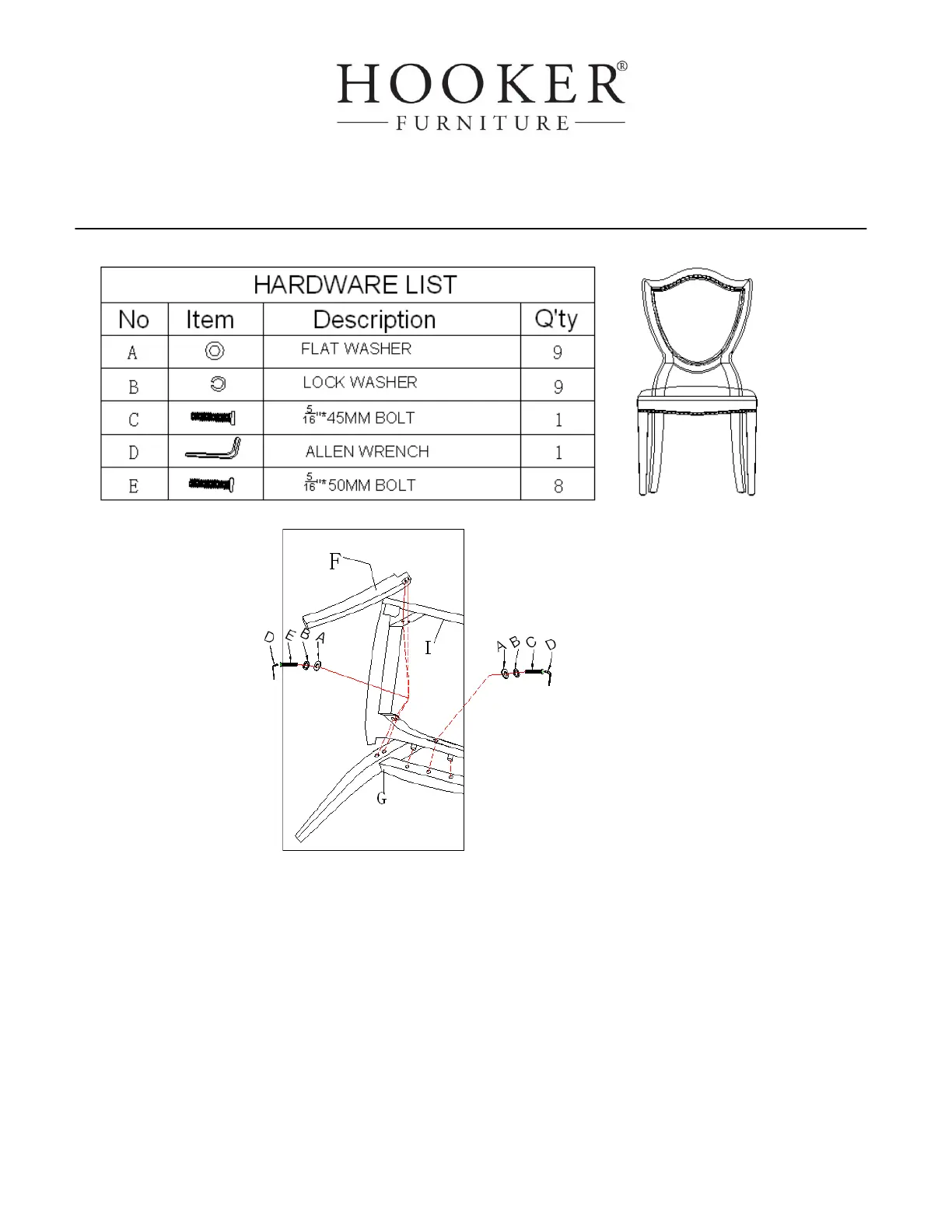

Diagram 1
