© Copyright 2012 Smart-AVI, All Rights Reserved

NOTICE

The information contained in this document is subject to change

without notice. SmartAVI makes no warranty of any kind with regard

to this material, including but not limited to, implied warranties

of merchantability and fitness for any particular purpose.

SmartAVI will not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or

translated into another language without prior written consent

from SmartAVI.

For more information, visit www.smartavi.com.

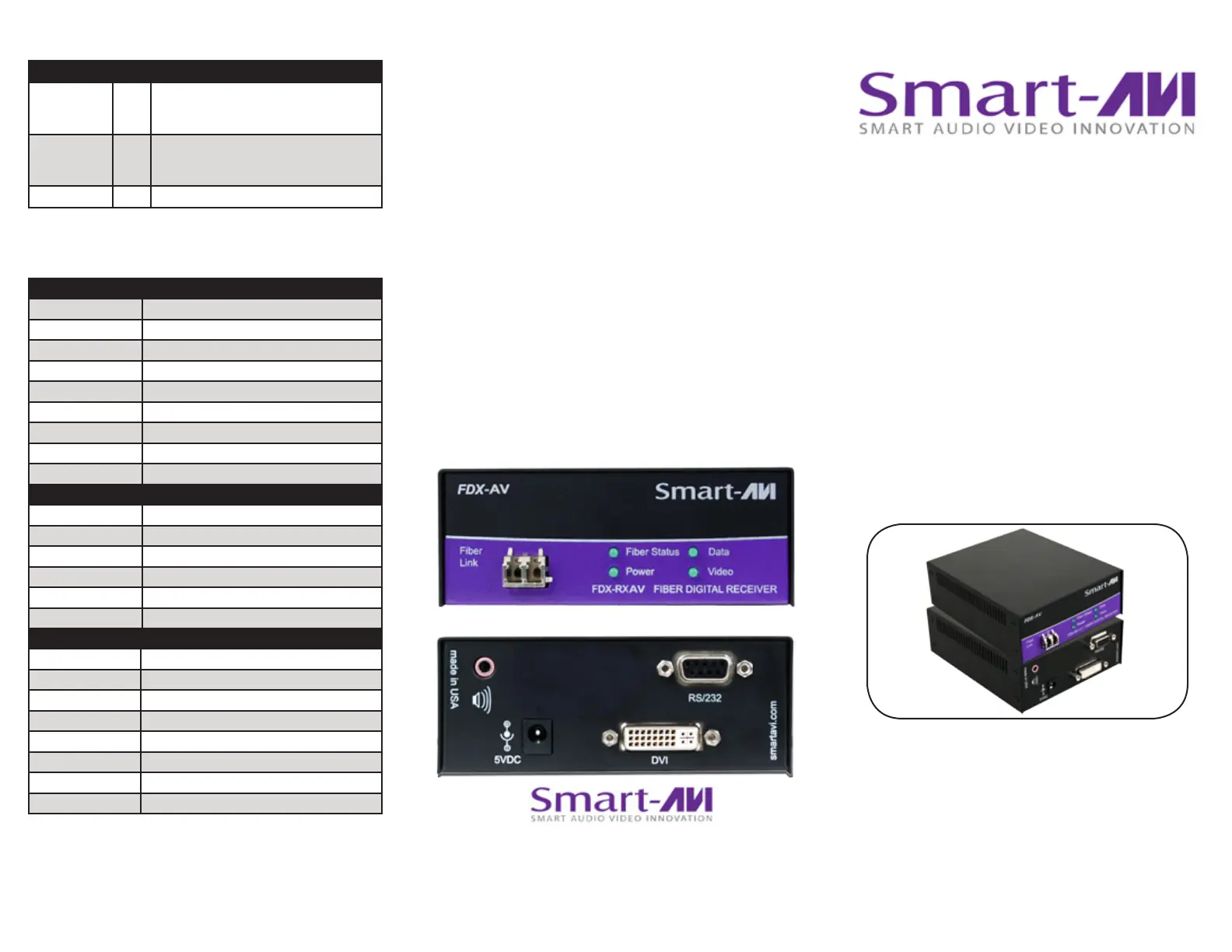

The FDX-AV consists of a transmitter and

receiver that extend DVI-D, audio and RS-

232 signals up to 1,400 feet over a single

multimode ber optic cable.

FDX-AV

DVI-D Video, Stereo Audio, and RS-

232 Extender over Fiber Optic Cable

www.smartavi.com

Installation

Manual

What’s in the Box?

PART NO.QTYDESCRIPTION

FDX-TXAV1FDX-AV Transmitter Unit - DVI-D, Stereo

Audio and RS-232 Extender over Fiber Op-

tic Cable

FDX-RXAV1FDX-AV Receiver Unit - DVI-D, Stereo Au-

dio and RS-232 Extender over Fiber Optic

Cable

Power Supply2PS5VDC4A

Technical Specications

VIDEO

FormatDVI-D Single Line

Maximum Pixel Clock165 MHz

Input Interface(1) DVI-D 29-pin female

Output Interface(1) DVI-D 29-pin female

ResolutionUp to 1920 x 1200 @60Hz

DDCInternal

Input EqualizationAutomatic

Input Cable LengthUp to 20 ft.

Output Cable LengthUp to 20 ft.

AUDIO

Frequency Response20 Hz to 20 KHz

Impedance600 ohm

Nominal Level0-1.0 V

Common ModeRejection at 60dB

Input Interface(1) 3.5 mm Stereo Audio

Output Interface(1) 3.5 mm Stereo Audio

OTHER

PowerExternal 100-240 VAC/5VDC4A @20W

Dimensions4.5”W x 5.375”H x 1.75”D

Weight1 lb.

ApprovalsUL, CE, ROHS Compliant

Operating Temp.32-131°F (0-55 °C)

Storage Temp.-4-185 °F (-20-85 °C)

HumidityUp to 95%

RS-232Data up to 115,000 bps

FDX-AV Receiver Front

FDX-AV Receiver Rear

SmartAVI, Inc. / Twitter: smartavi

11651 Vanowen St. North Hollywood, CA 91605

Tel: (818) 503-6200 Fax: (818) 503-6208

http://www.SmartAVI.com
