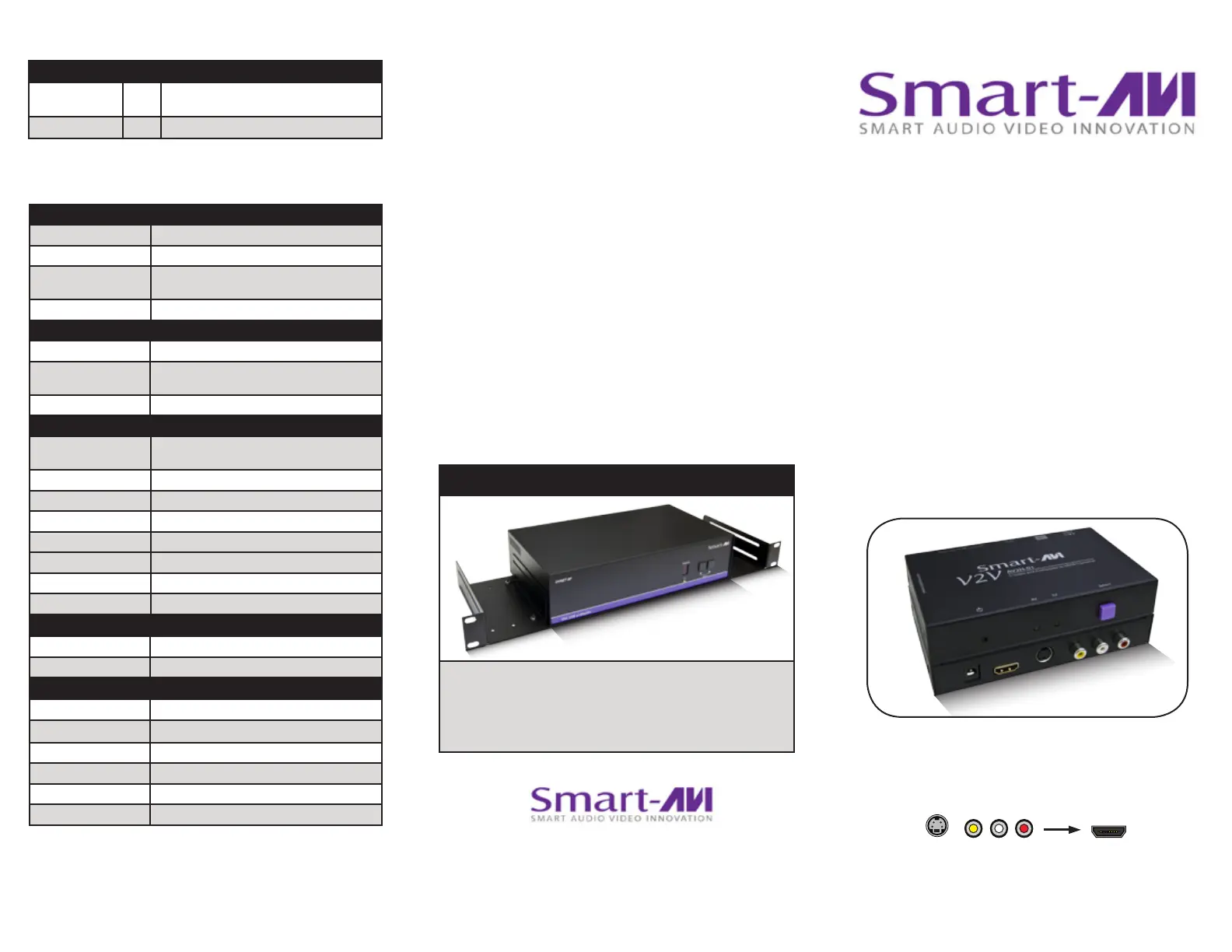

S-Video and Composite to HDMI

Converter

V2V-AV2H-01

www.smartavi.com

Installation

Manual

What’s in the Box?

PART NO.QTYDESCRIPTION

V2V-AV2H-011SVideo, Composite Video and Audio to HDMI

Converter

PS5VDC2A15 Volt 2 Amp Power Supply

Technical Specications

OTHER

PowerExternal 100-240 VAC/5VDC2A @10W

Dimensions5.25 in W x 3.5 in H x 1 in D

Weight0.71 lb

Operating Temp.0-55 °C (32-131°F)

Storage Temp.-20-85 °C (-4-185 °F)

HumidityUp to 95%

© Copyright 2012 SmartAVI, All Rights Reserved

NOTICE

The information contained in this document

is subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or

translated into another language without prior written consent

from Smart-AVI.

For more information, visit www.smartavi.com.

SmartAVI, Inc. / Twitter: smartavi

11651 Vanowen St. North Hollywood, CA 91605

Tel: (818) 503-6200 Fax: (818) 503-6208

http://www.SmartAVI.com

Rack Mountable Option

Our SmartRack is the perfect solution to allow

virtually all SmartAVI devices to be custom mounted

in a standard 19” server rack. The SmartRack is fully

adjustable and can secure/organize several devices.

HDMI VIDEO

FormatHDMI 1.3b [Deep Color, xvYcc color space

supported]

DVI ComplianceSingle-link DVI-D 1.1

HDCP Compliance1.0/1.1

Video BandwidthSingle-link 340MHz [10.2Gbps]

Resolution480i,480p,720i,720p,1080i,1080p

Output Interface(1) HDMI[7.1ch audio & video]

ConnectorType A[19-pin female]

Maximum Distance25 ft.

COMPOSITE VIDEO

Input FormatNTSC/PAL/SECAM

Output FormatsNTSC/PAL/SECAM

Resolution800 x 600, 1024 x 768,

up to 1280 x 1024@60Hz

Input Interface(3) RCA Female

V2V FAMILY

AUDIO

Signal TypeStereo Unbalanced

Ouput InterfaceLeft/Right RCA (Female)

S-VIDEO

Input FormatNTSC/PAL/SECAM

Resolution800 x 600, 1024 x 768,

up to 1280 x 1024@60Hz

Input Interface(1) S-Video Female
