FANTEC
MR-35HDC
HARD DISK
COPYSTATION
USER MANUAL
Red=RAID
Blue=Dup
POWER
Copy
Compare
Prescan
Erase
RAID0
RAID1
BIG
JBOG
Start
Mute
Reset
RAID
DUP
MENU
1
MENU ............................................................................................................................1
1. Product Introduction .............................................................................................................. 2
2. Operation in RAID function ........................................................................................................ 3
3. NOTE 14
4. Features ............................................................................................................................... 14
5
6
7
8
9. Package contents ................................................................................................................... 22
2.1.1 JBOD MODE ...................................................................................................................... 6
2.1.2 BIG MODE .......................................................................................................................... 7
2.1.3 RAID0/FAST MODE ........................................................................................................... 8
2.1.4 RAID1/SAFE MODE ........................................................................................................... 9
2.1.5 Partitioning Volumes ......................................................................................................... 10
....................................................................................................................................
4.1 High speed external storage solution, USB2.0 480Mbps.................................................... 14
4.2 Serial ATA HDD .................................................................................................................... 15
4.3 Four Working Mode ......................................................................................................... 15
4.4 Support system Windows 2000/XP/VISTA & Mac os 9.0 or above version .............................. 17
4.5 System Expansion for Windows............................................................................................... 17
. Quick Start Operation in RAID Mode ....................................................................................... 19
. RAID1 Rebuild (data recovery ................................................................................................. 20
. Operation in DUP function ....................................................................................................... 21
. Quick Start Operation in Copy Mode....................................................................................... 22
22
8. Quick Start Operation in Copy Mode
9. Package contens
FANTEC MR-35HDC
User manual
AC Cable
USB 2.0 Cable
(1) Insert the Source-HDD in slot2 and
T
arget-HDD into slot1.
The size of the “Target-HDD” be must equal or larger than the “Source-HDD”.
(2) Set the function switch to “DUP” (Duplicate) operation and mode switch to “Copy”.
(3) Connect the power cord.
(4) Push down the Power button.
(5) The front panel will display: Power LED On: Blue
Operation LED On: Blue
(6) The unit will detect HDD automatically and HDD status LED will red twinkle during this time. After the
detection has finished, the HDD status LED will become blue and mode LED will stay in green color.
The modes LED flashes according to your selected DUP mode.
For example, if you select “Copy”, LED next to “100%” will flash.
(7) Press the “Start” button for more than 2 seconds and a buzzer will beep for two times. Now the
system will start to run the selected mode. The progress will be displayed by the percent LEDs from 25%
to 100% and the HDD status LED will twinkle in purple color.
(8) When the work has finished, the percent LED will stay green at 100% and the buzzer will beep 2
times/sec for about 5-6 seconds. The HDD status LED will stay in blue color.
During DUP operation the USB interface of the unit is deactivated. Even if the USB cable is connected to
PCs USB interface, the unit will not be detected by PC.
Note:
Note:
Note:

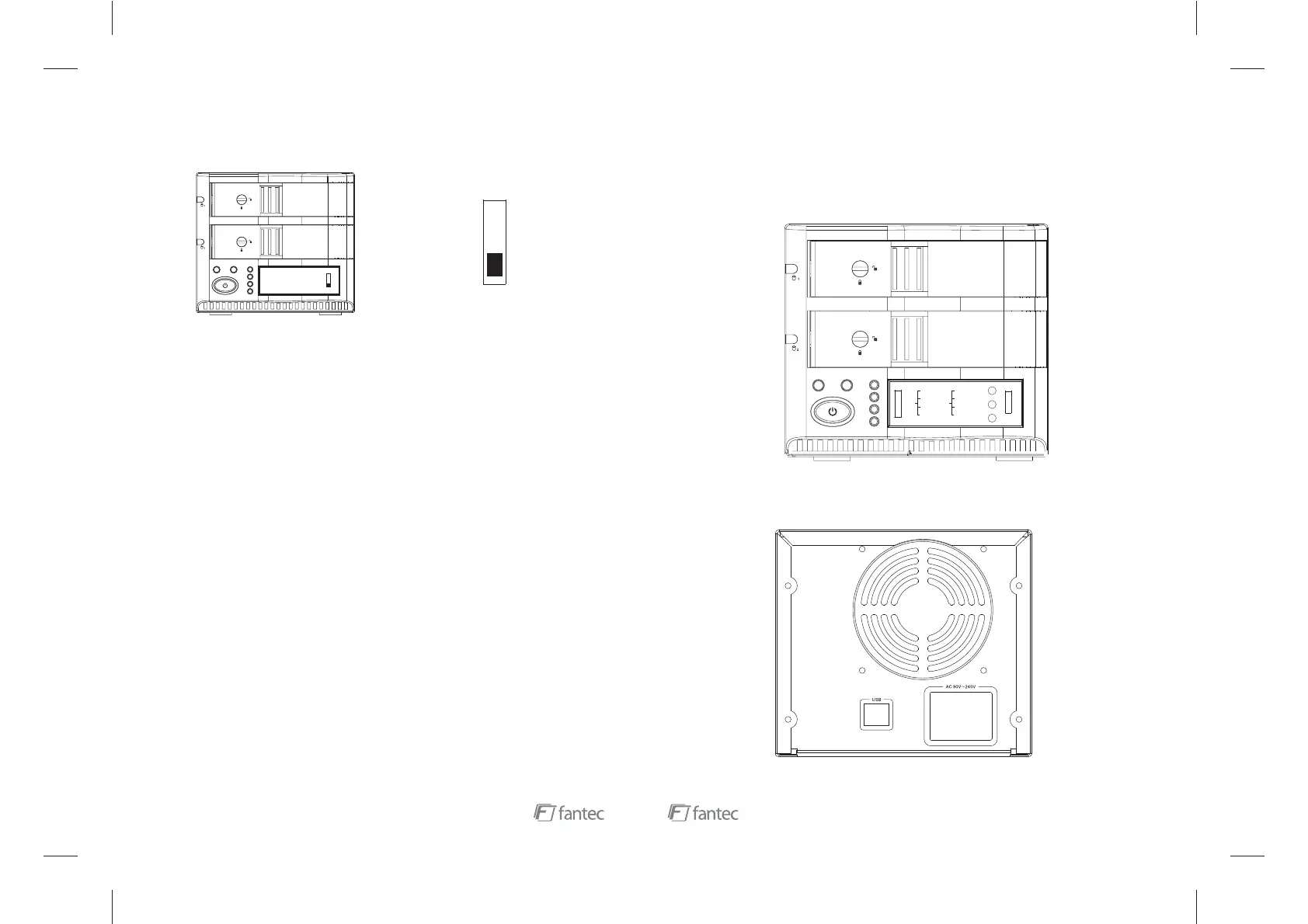

Front
Back
1. Product Introduction
2 SATA HDDs to USB 2.0 interface.
221
7. Operation in DUP function (duplicate)
RAID
DUP
ATTENTION:
Please set the
switch to DUP
operation.
RAID
DUP
R e d = R A I D
Blue = D up
POWER
Copy
Compa re
Presc an
Erase
RAID0
RAID1
BIG
JBOG
Sta rt
Mut e
Res et
RAID
DUP
DUP
RAID
COPY
COMPARE
PRESCAN
ERASE
This mode copies all information from Source-HDD (slot2) to Target-HDD
(slot1), incl. boot sectors, MBR, hard drive partitions and every single
data block as a 1:1 copy. If the Target-HDD is larger than the Source-
HDD, the remaing space will be left blank.
This mode compares the sectors of both HDDs. If the sectors are
different, the buzzer will give an alarm beep and the HDD status LED of
slot 1 will twinkle in red. If they are ok, the buzzer will beep for 5 times and
the “Compare-LED” will stay green.
This mode enables a bad sector scan of HDD2 (Source-HDD). If the
sectors are ok, it will beep 6 times and the “Prescan-LED” will stay green.
This mode deletes partition information of HDD1 (slot1). After the task
has finished, it will beep 6 times and the “Erase-LED” will stay green.
TCEFFETNEVE
No HDD detected or HDD failed HDD Status LED will send red light
thgileulbdneslliwDELsutatSDDHKOnoitceteD
elprup/eulbdneslliwDELsutatSDDHsseccaDDH
twinkle
HDD Read Failure HDD1 LED will send red light
dnathgilderdneslliwDEL1DDHrorreypoC
buzzer will beep
Compare error HDD1 LED will send red twinkle and
buzzer will beep 3 times
Prescan error HDD2 LED will send red light and
buzzer will beep
dnathgilderdneslliwDEL1 DDHrorreesarE
buzzer will beep
Note:
The size of the “Target-HDD” must be equal or larger than the “Source-HDD”.
Troubleshooting
