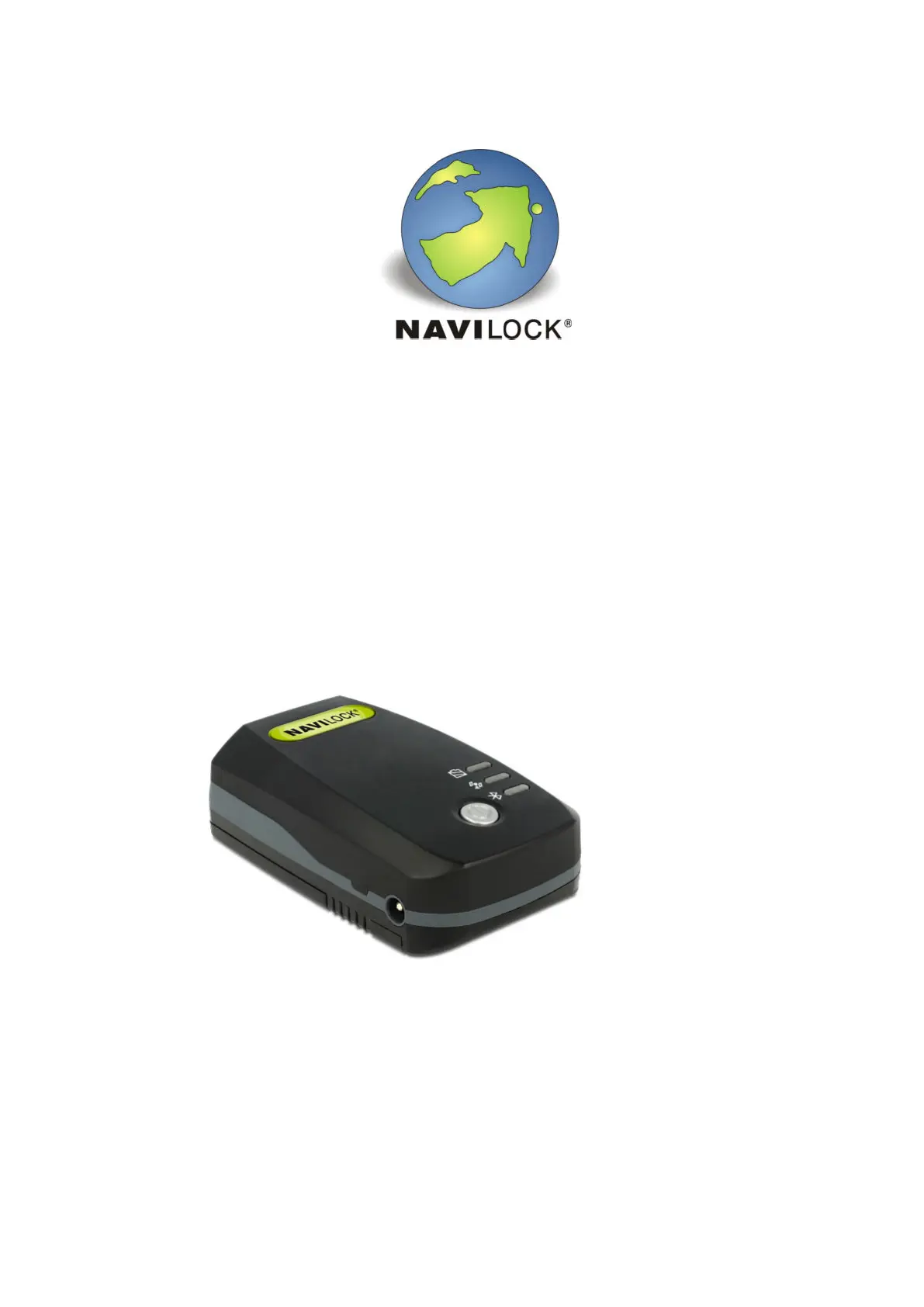

Navilock BT-821G Bluetooth GNSS Receiver MT3333

Description

TheBluetooth GNSS receiver BT-821G is using the MTK

MT3333 chipset.In combinationwith amobile devicesuch

as smart phone, laptop or tablet and a suitable routing

software navigation is possible.

Specification

• Chipset vendor / type: MediaTek MT3333 GLONASS GPS

• Frequency:

GPS: L1, 1575.4200 MHz

GLONASS: L1, 1602.5625 ~ 1615.5000 MHz

• Channels: 33 tracking, 99 acquisition

• Supports NMEA 0183 V3.01 protocols: GGA, GSA, GSV, RMC, VTG

• Update rate: 1 ~ 10 Hz

• Sensibility max. –165 dBm

• Operating temperature: -20 °C ~ +60 °C

• Cold start in ca. 34 seconds

• Hot start in ca. 1 second

• Reacquisition in ca. 1 second average

• Position horizontal: GPS / SBAS / QZSS+GLONASS: 2.5 m CEP

• Speed: 0.1 m/s

• Datum: WGS 84

• Dynamic prerequisites:

Acceleration limit: smaller than 4 g

Height limit: 18000 m

Speed limit: 515 m/s

• Performance:

Power supply: 5 V

Rechargeable battery: 3.7 V 1700 mA/h

Operating time: ca. 30 h tracking

Current: ca. 50 mA tracking

• Bluetooth V 2.0 class 2 10 m

• Dimensions (LxWxH): ca. 73.50 x 43.00 x 24.50 mm

• Weight: ca. 86 g

Package content

• Bluetooth GNSS receiver

• Navilock support CD

• User manual on CD ROM

• USB power cable

Item No. 60324

EAN: 4043619603244

Country of origin: Taiwan, Republic of

China

Package: Retail Box

© 2016 by Navilock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes

and errors excepted.

www.navilock.com

60324

1 / 2

01.03.2016
