Fix the bolts using the NM-ICS1 clip-on spacers. Note that

2 extra clip-on spacers are supplied in case any are lost or

damaged when removing the bolts at a later point.

Transporting your system

For LGA1200/115x (LGA1150, LGA1151, LGA1155,

LGA1156) apply a single 4-5mm dot in the centre:

Required mounting parts:

If you would like to use the cooler on an assembled

system and your case does not have a cut-out at the

rear side of the motherboard tray, you must first

remove the motherboard from the case in order to be

able to install the supplied backplate.

Removing the motherboard

Setting up the backplate2

First, identify the side of the backplate that should face the

motherboard (marked with caution signs). Then choose

the appropriate hole spacing for your socket and insert

the four bolts into the backplate from the opposite side

(marked with model name, SecuFirm2™ branding and

numbers for hole spacing) at the appropriate position.

Use hole position 1 for LGA1200/115x (LGA1150,

LGA1151, LGA1155, LGA1156) and hole position 2 for

LGA1700 (LGA17xx family):

4x NM-IPS1

black plastic spacers for

LGA1200/115x

4x NM-IPS3

blue plastic spacers for

LGA1700

Attaching the backplate3

Caution: The supplied backplate will install over the

motherboard’s stock backplate, so the motherboard’s

stock backplate must not be taken off.

Place the backplate on the rear side of the motherboard so

that the bolts protrude through the mounting holes.

Please first choose the correct set of plastic spacers and

the correct set of holes on the mounting bars according

to whether you are using an LGA1200/LGA115x (LGA1150,

LGA1151, LGA1155, LGA1156) or an LGA1700 (LGA17xx

family) socket motherboard.

Use the black NM-IPS1 plastic spacers for LGA1200/

LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and

the blue NM-IPS3 plastic spacers for LGA1700 (LGA17xx

family).

Installing the mounting bars4

NM-IPS3 (blue)

LGA1700

NM-IPS1 (black)

LGA1200/115x

Caution: Make sure to use the correct hole position on both

ends of the NM-IMB3 mounting bars so that they will not

be misaligned.

Put the plastic spacers onto the bolts of the backplate, then

add the mounting bars.

Caution: Choose the alignment of the mounting bars

according to the desired final orientation of the cooler:

Caution: Make sure that the curved sides of the mounting

bars are pointing outwards.

Fix the mounting bars using the four NM-ITS1 thumb

screws.

Caution: Gently tighten the screws until they stop, but do

not use excessive force (max. torque 0.6 Nm).

Applying the thermal paste5

If there are residual traces of thermal paste or thermal

pads on your CPU, please clean them off first. Then apply

the supplied NT-H1 thermal paste onto the CPU as shown

in the following images.

For LGA1700 (LGA17xx family), apply 5 small dots; 4 dots

with ~2mm diameter near the corners plus 1 dot with

3-4mm diameter in the centre:

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

Fastening the heatsink to the CPU6

Caution: Please first take off the fan as well as the protec-

tion cover at the bottom side of the heatsink.

Then put the heatsink onto the CPU and screw it to the

screw threads of the mounting bars. Perform 2-3 turns on

each screw, then repeat until both are fully tightened.

Caution: Gently tighten the screws until they stop, but do

not use excessive force (max. torque 0.6 Nm).

Use hole position 1 for LGA1200/115x (LGA1150,

LGA1151, LGA1155, LGA1156) and hole position 2 for

LGA1700 (LGA17xx family):

4x NM-IBT5

bolts

4x NM-ICS1

clip-on spacers

4x NM-ITS1

thumb screws

2x NM-IMB3

mounting bars

1x NM-IBP4

backplate

Position 1:

LGA1200/115x

Position 2:

LGA1700

Position 1:

LGA1200/115x

Position 2:

LGA1700

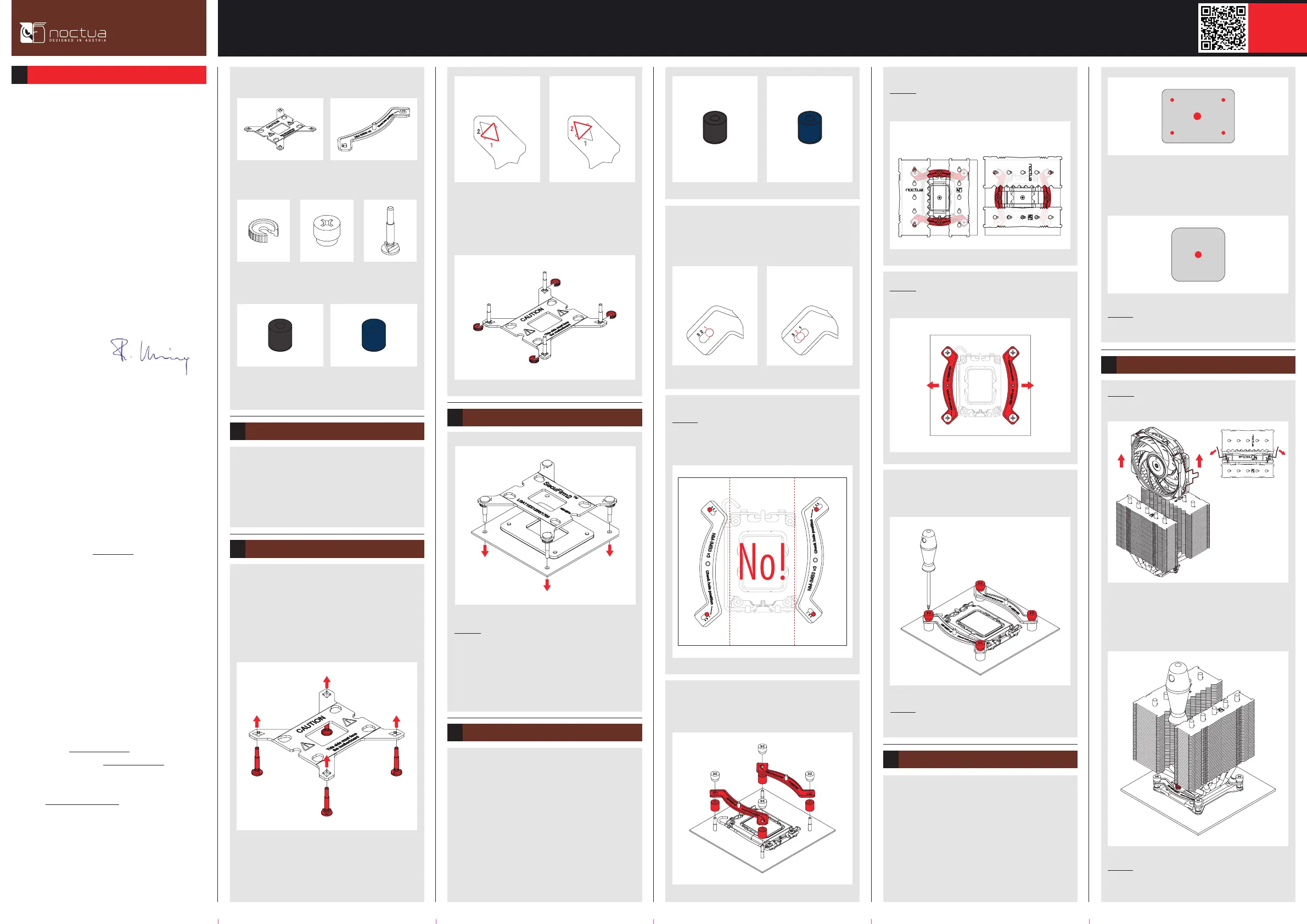

This manual will guide you through the installation process of

the SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility

centre on our website (ncc.noctua.at) and verify that the

cooler is fully compatible with your motherboard.

Please also make sure that your PC case offers sufficient

clearance for the cooler and that there are no compatibility

issues with any other components (e.g. tall RAM modules).

Double check that the heatsink and fan clips do not make

contact with the VGA card, other PCIe cards, motherboard

heatsinks or any other components.

Noctua cannot be held responsible for any damage or losses

caused by compatibility issues.

Should you encounter any difficulties, please check the FAQs

on our website (www.noctua.at/faqs) and don’t hesitate to

contact our support team at support@noctua.at.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

Dear customer,

Thank you very much for choosing the Noctua NH-D12L.

The NH-D12L is a low-height 120mm class CPU cooler that

has been conceived to combine outstanding quiet cooling

performance with superior case compatibility.

It is the perfect choice for applications that require serious

cooling efficiency but cannot fit the larger U12A!

Enjoy your NH-D12L!

Yours sincerely,

Roland Mossig, Noctua CEO

INSTALLATION MANUAL

LGA1700, LGA1200 & LGA115x!

Scan this code to

display multilingual

manuals on your

phone.

NOCTUA NH-D12L

INSTALLATION MANUAL

Orientation A Orientation B
