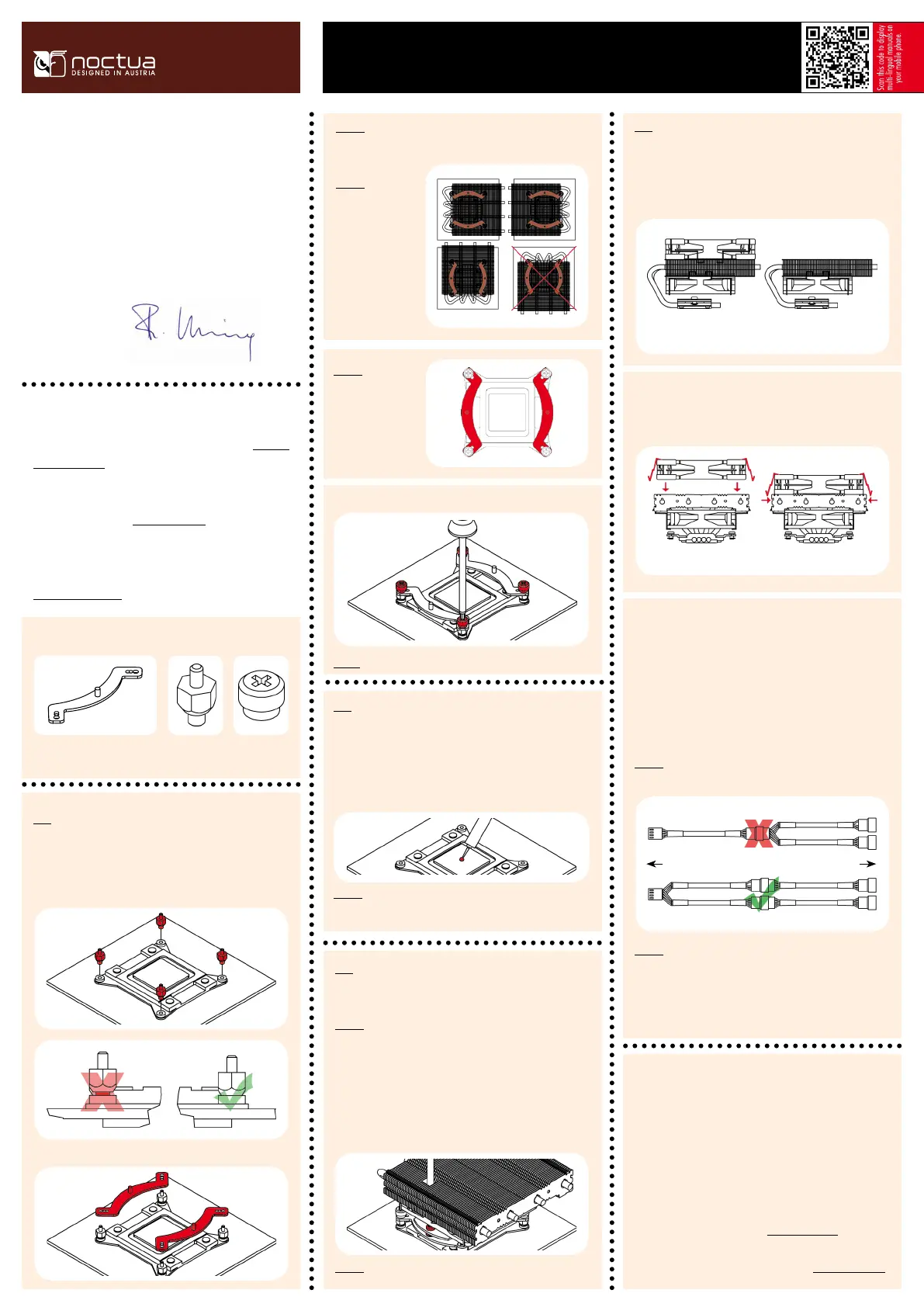

Noctua NH-L12 |

Installation Manual | LGA2011

Installing the mounting-bars

First screw the NM-IBT2 bolts into the screw threads of the LGA2011

socket frame.

Required mounting parts:

Dear customer,

Congratulations on choosing the Noctua NH-L12. This smaller size cooler

packs all essential technologies of our award-winning high-end models

into a highly compact package in order to give you the best possible quiet

cooling experience for HTPCs and small form factor builds. I’m confident

that you will be able to sense some of the research, attention and care

we’ve put into making this product. Enjoy your NH-L12!

Yours sincerely,

Roland Mossig, Noctua CEO

4x NM-ITS1

Thumbscrews

This manual will guide you through the installation process of the

SecuFirm2™ mounting system step by step. Prior to installing the

cooler, please consult the compatibility list on our website (www.noc-

tua.at/compatibility) and verify that the cooler is fully compatible with

your motherboard. Should you encounter any difficulties, please check

the FAQs on our website (www.noctua.at/faqs) and don’t hesitate to

contact our support team at support@noctua.at. Noctua cannot be held

responsible for any damage or losses caused by compatibility issues.

Multilingual versions of this manual are available on our website:

www.noctua.at/manuals

4x NM-IBT2

Bolts

Then put the NM-IMB2 mounting-bars onto the bolts.

Caution: Choose the alignment of the mounting bars according to the

desired final orientation of the cooler:

Caution: Make sure

that the curved sides of

the mounting bars are

pointing outwards.

Fix the mounting bars using the NM-ITS1 thumbscrews.

Caution: Gently tighten the screws until they stop, but don’t use excessive force.

Applying thermal paste

If there are residual traces of thermal paste or thermal pads on your CPU,

please clean them off first. Then press a small drop (4-5mm diameter) of

NT-H1 onto the centre of the heatspreader.

Caution: Applying too much thermal paste will lower the heat conductivity

and cooling performance!

2x NM-IMB2

Mounting-Bars

Fastening the heatsink to the CPU

Caution: Tighten the screws until they stop.

Caution: Please first take off the protection cover at the bottom side of the

heatsink and remove the rubber support bar between the bottom fan and

the base of the heatsink!

Take off the top fan. Then put the heatsink onto the CPU and screw it to

the screw threads of the mounting bars. Note that you can reach through

the blades of the lower fan using the supplied screw driver. There is thus

no need to take off the lower fan for installation.

Even with high-grade products and strict quality control, the possibility of

defects cannot be eliminated entirely. Therefore, we aim at providing the

highest possible level of reliability and convenience by offering a warranty

period of 6 years and direct, fast and straightforward RMA service.

Should you encounter any problems with your NH-L12, please don’t

hesitate to contact our support team (support@noctua.at).

Please also consult the FAQ section on our website: www.noctua.at/faqs.

Warranty, Support and FAQs

The NH-L12 can be used with both fans for maximum performance or with

the NF-B9 fan only in order to reduce the total height to 66mm:

If you want to use both fans, put the NF-F12 fan back on. If you don’t

run the NF-F12 on the CPU cooler, you can use the supplied fan screws or

silicone Vibration-Compensators to install it inside your case.

Connect the fan(s) to the mainboard. Use the supplied NA-YC1 y-split

cable to connect both fans to one fan header.

Depending on your CPU and the temperature inside the case, you may

interconnect the supplied NA-RC6 and NA-RC7 Low-Noise Adapters

(L.N.A.) in order to further reduce the fans operating noise. Use the NA-

RC6 for the NF-F12 120mm fan and the NA-RC7 for the NF-B9 92mm fan.

Caution: Never use one adaptor for both fans by putting it before the

y-split cable.

Caution: When using the L.N.A., check the temperature of your CPU using

appropriate software (e.g. the respective applications of your mainboard

manufacturer), in order to evade automatic throttling of the CPU due to the

increased temperature. If the cooling performance is insufficient, please

increase case ventilation or remove the L.N.A.

Step 1 Step 2

Dual fan mode

height 93mm

Single fan mode

height 66mm

Fan Setup

Step 4

Step 1

Step 2

Step 3

Mainboard Fans

Low-Noise Adaptor Y-Split Cable

Y-Split Cable Low-Noise Adaptors

Caution: In tower style

cases, please avoid

installing the NH-L12

with the bends of the

heatpipes pointing

upwards as this may

result in reduced

cooling performance.
