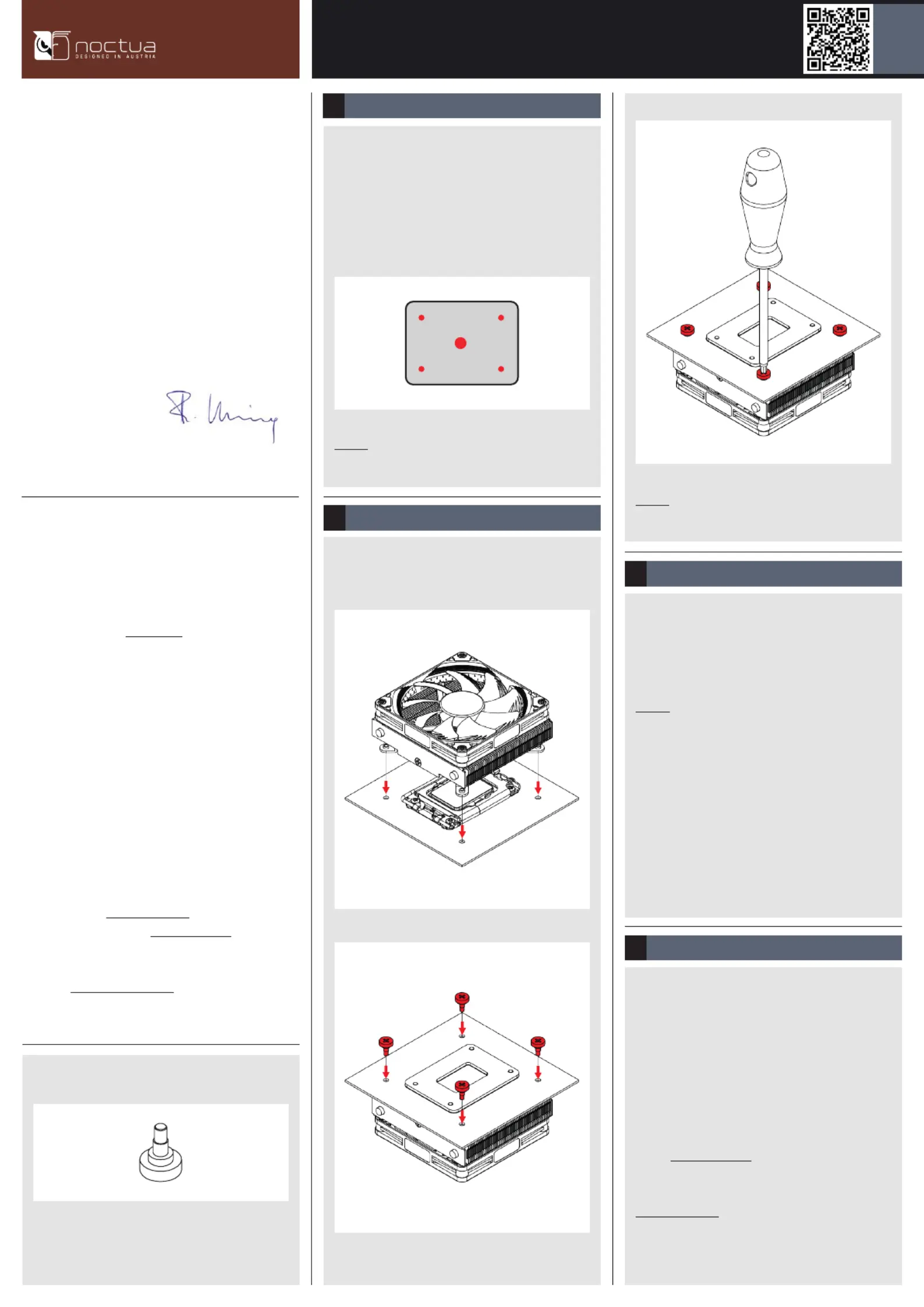

NOCTUA NH-L9i-17xx chromax.black

INSTALLATION MANUAL

Scan this code to display

multilingual manuals on

your phone.

Even with high-grade products and strict quality control, the

possibility of defects cannot be eliminated entirely.

Therefore, we aim at providing the highest possible level of

reliability and convenience by offering a warranty period of 6

years and direct, fast and straightforward RMA service.

Should you encounter any problems with your NH-L9i-17xx

chromax.black, please don’t hesitate to contact our support

team at support@noctua.at.

Please also consult the FAQ section on our website:

www.noctua.at/faqs

Warranty, support and FAQs!

Connect the fan to the motherboard. Depending on your CPU

and the temperature inside the case, you may interconnect

the supplied NA-RC7 Low-Noise Adaptor (L.N.A.) in order to

further reduce the fan’s operating noise.

Caution: When using the L.N.A., check the temperature of

your CPU using appropriate software (e.g. the respective

applications of your motherboard manufacturer), in order to

evade automatic throttling of the CPU due to the increased

temperature. If the cooling performance is insufcient, please

increase case ventilation or remove the L.N.A.

In case you would like to use a 92x25mm fan for further

improved performance, please rst unscrew the pre-installed

NF-A9x14 fan and use the supplied longer screws to install

the 92x25mm fan.

Fan setup3

Caution: Gently tighten the screws until they stop, but do not

use excessive force (max. torque 0.6 Nm).

If there are residual traces of thermal paste or thermal pads

on your CPU, please clean them off rst.

Then apply the supplied NT-H1 thermal paste onto the

CPU as shown below (4 dots with ~2mm diameter near the

corners plus 1 dot with 3-4mm diameter in the centre):

Applying the thermal paste1

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

Put the heatsink onto the CPU and x it from the rear side of

the motherboard using the mounting screws.

Fastening the heatsink to the CPU2

Dear customer,

Congratulations on choosing the Noctua NH-L9i-17xx

chromax.black. This small cooler packs all essential

technologies of our award-winning high-end models into

a highly compact package in order to give you the best

possible quiet cooling experience for HTPCs and small form

factor builds. I’m condent that you will be able to sense

some of the research, attention and care we’ve put into

making this product.

Enjoy your NH-L9i-17xx chromax.black!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process

of the SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility

centre on our website (ncc.noctua.at) and verify that the cooler

is fully compatible with your motherboard.

Please also make sure that your PC case offers sufcient

clearance for the cooler and that there are no compatibility

issues with any other components (e.g. tall RAM modules).

Double check that the heatsink does not make contact with

the VGA card, other PCIe cards, motherboard heatsinks or any

other components.

Noctua cannot be held responsible for any damage or losses

caused by compatibility issues.

Should you encounter any difculties, please check the FAQs

on our website (www.noctua.at/faqs) and don’t hesitate to

contact our support team at support@noctua.at.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

Required mounting parts:

4x NM-IBT4 mounting screws

Specyfikacje produktu

Marka:	Noctua
Kategoria:	Sprzęt komputerowy
Model:	NH-L9i-17xx chromax.black
Kolor produktu:	Czarny
Odpowiednia lokalizacja:	Procesor
Wysokość produktu:	37 mm
Szerokość produktu:	95 mm
Głębokość produktu:	95 mm
Waga produktu:	385 g
Szerokość opakowania:	213 mm
Wysokość opakowania:	54 mm
Głębokość opakowania:	149 mm
Ilość na paczkę:	1 szt.
Waga wraz z opakowaniem:	636 g
Napięcie:	12 V
Model:	Chlodnica/wentylator
Procesor:	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Zasilanie:	2.52 W
Obsługiwane gniazda procesora:	LGA 1700
MTBF (Średni okres międzyawaryjny):	150000 h
Poziom hałasu (wysoka prędkość):	23.6 dB
Średnica czaszy wentylatora:	92 mm
Prędkość obrotowa (min):	600 RPM
Prędkość obrotowa (max):	2500 RPM
Przepływ powietrza:	57.5 m³/h
Typ łożyska:	Self-Stabilising Oil-pressure Bearing (SSO)
Wymiary wentylatora (szer. x głęb. x wys.):	92 x 92 x 25 mm
Tworzywo płyta podstawy:	Miedź
Kompatybilny typ obudowy:	Uniwersalne
