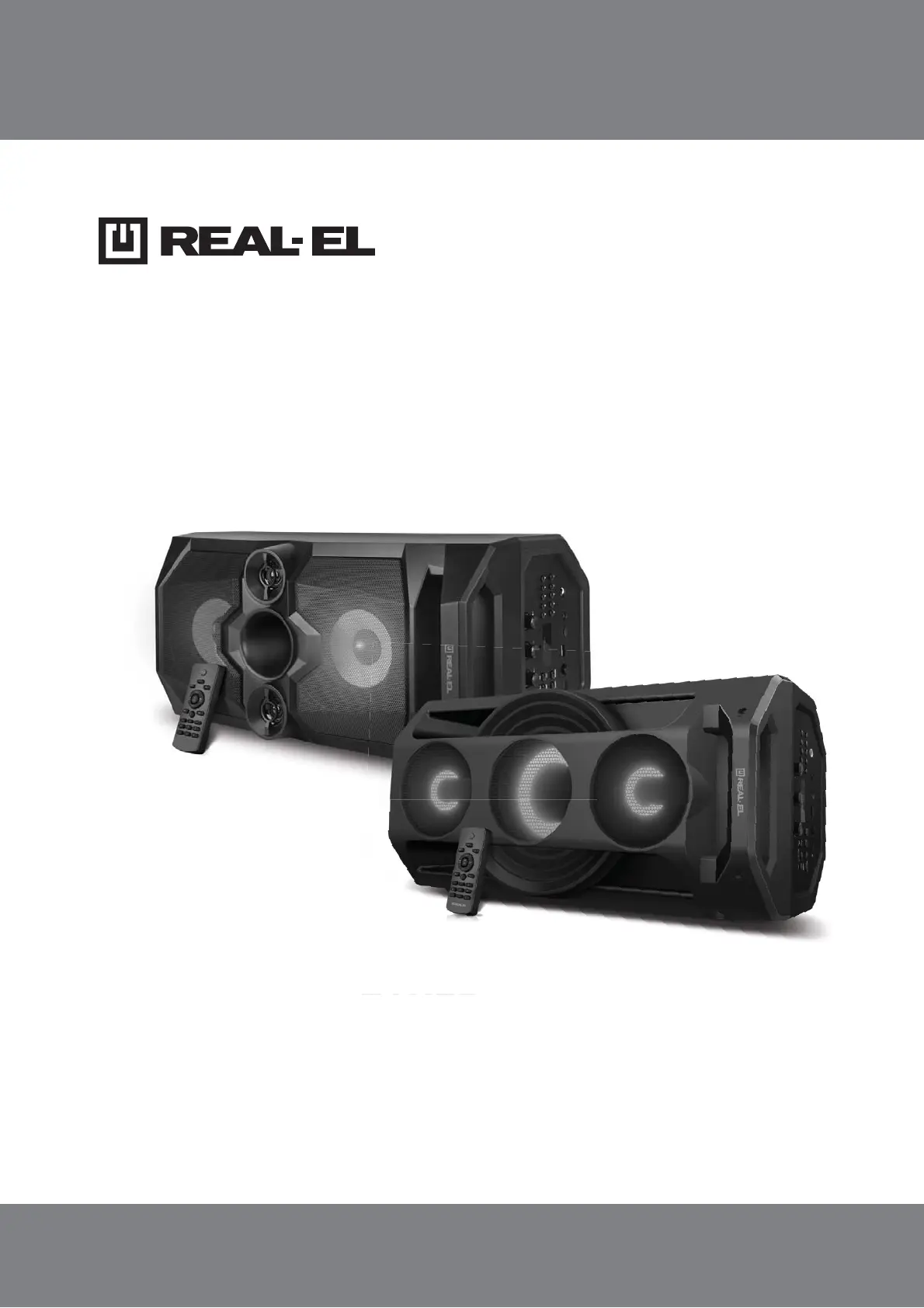

OPERATION MANUAL
PORTABLE SP
SYSTEM
X-771
X-777
E
S
PEAKER
Technical support: www.real-el.com
ENG
1
Operation Manual
X-771 / X-777
ENG
Congratulations on your purchase of the REAL-EL speaker system!
COPYRIGHT
© 2022. ENEL GROUP OU.
This Manual and information contained in are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
1. BUYER RECOMMENDATIONS
Ϝ Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device for
GDPDJH LI WKH SURGXFW ZDV GDPDJHG GXULQJ WUDQVSRUWDWLRQ DGGUHVV WKH ԛUP ZKLFK FDUULHG RXW WKH
delivery; if the product functions incorrectly, address the dealer at once.
Ϝ Check up the package contents and availability of the warranty card. Make sure the warranty card has a
shop stamp, a legible signature or the seller’s stamp and purchase date, and the goods
number corresponds to that in the warranty card. Remember: in case of warranty card loss or discrepancy
of numbers you forfeit the right for warranty repairs.
Ϝ Do not switch on the speaker system immediately after you bring it into a room from environment with
negative temperature! After unpacking, the speaker system should be kept in conditions of room
temperature for at least 4 hours.
Ϝ Before installing and using the speaker system, read this Manual carefully and keep it for future
reference.
2. PACKAGE CONTENTS
Ϝ Portable speaker system — 1 pc
Ϝ 3.5 mm mini-jack to 3.5 mm mini-jack signal cable — 1 pc
Ϝ USB power cable — 1 pc
Ϝ Remote control (RC) — 1 pc
Ϝ User manual — 1 pc
Ϝ Warranty card — 1 pc
1
1
2
2
5
6
CONTENTS
1. BUYER RECOMMENDATIONS ....................................................................
2. PACKAGE CONTENTS .............................................................................
3. SAFETY PRECAUTIONS ...........................................................................
4. TECHNICAL DESCRIPTION ........................................................................
5. CONNECTION AND OPERATION ................................................................
6. TECHNICAL SPECIFICATIONS ...................................................................
Technical support: www.real-el.com
ENG
X-771 / X-777
2
Operation Manual
3. SAFETY PRECAUTIONS
ϜDo not open the portable speaker system (PSS) and do not perform repairs by yourself. Service
DQGUHSDLUVVKRXOGEHSHUIRUPHGRQO\E\TXDOLԛHGVSHFLDOLVWVDWDXWKRUL]HGVHUYLFHFHQWHUV7KHOLVW
RIDXWKRUL]HGVHUYLFHFHQWHUVLVon www.real-el.com
ϜMake sure that foreign objects do not get inside the holes of the PSS.
ϜProtect the PSS from high humidity, water and dust.
ϜProtect the PSS from heating: do not place it closer than 1 m from a heat source. Do not expose it
to direct sunlight.
Ϝ Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.
Ϝ In case of PSS does not work properly. Please contact place of purchase or service center.
Special features
Ϝ TWS function. Connect two speakers together
Ϝ Playback via Bluetooth
Ϝ USB, Micro SD (TF)
Ϝ AUX connection for use with PC, TV and other sources
Ϝ (TXDOL]HUIRUDGMXVWLQJWKHOHYHORIKLJKDQGORZIUHTXHQFLHV
Ϝ RGB Backlight
Ϝ Extended battery life
Ϝ Microphone input with echo function
Ϝ LED display
4. TECHNICAL DESCRIPTION
Control panel
"
MIC: 6.3 mm jack microphone jack
#
AUX: 3.5 mm mini-jack for audio signal connecting (phone, MP3 player, etc.)
$
TF CARD: Micro SD card slot
%
Display
&
USB port
'
Power ON/OFF
(
Charging
DC 5V
)
Indicator
*
0-9: Track number selection (in Player mode);
+
MODE: Bluetooth/USB/Micro SD/AUX (short press);
Turn ON/OFF prompt system tone (long press).
,
LIGHT: Switching backlight modes
-
TWS: Connect an additional speaker (Bluetooth mode only).
.
(46RXQG(ԚHFWPRGHVKRUWSUHVV5HVHWORQJSUHVV
/
: Next track (short press in Player mode);
Navigation on the track (long press in Player mode);
