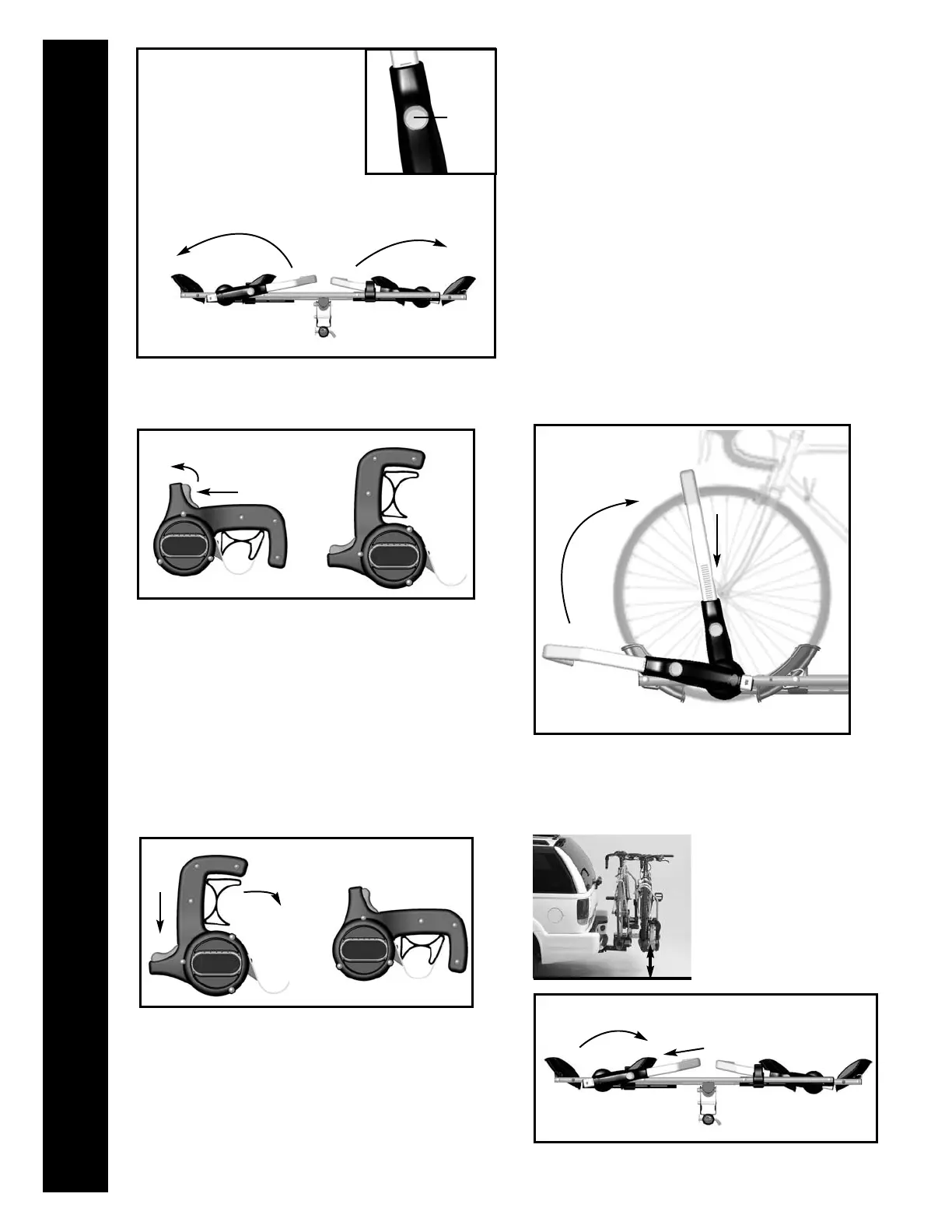

USER MANUAL

CCyyccllee--OOnnPPrroo

Please READ and FOLLOW all instructions carefully.

4017 (1 1/4” RECEIVER) OR 4018 (2” RECEIVER)

ASSEMBLE FRONT WHEELTRAYS - Determine which holes you

will use to mount the front wheel trays (Fig. 1A). For 20” tires inner-

most holes must be used(20” tire bikes cannot be mounted on the

#4012 add on kit).

Tube

Bolt

Front Wheel

Tray

Washer

Nut

Insert bolt through tube, slide wheel tray on, fasten with washer

and nut (Fig. 1B). Tighten nut until it is snug, where wheel tray

pivots freely. Repeat for each of the 2 front wheel trays.

Next attach the rack to the tilt bracket. Assemble in stepped

order (step 1, 2, 3) as shown above. Tighten knob at end of

bracket until bracket is tight in receiver.

1

2

3

Insert plugs into

unused holes.

1A

1B

2B

MUST use 2 wheel trays per wheel.

See Picture 4B.

Front Wheel

Tray

Washer

Nut

Bolt

Tube

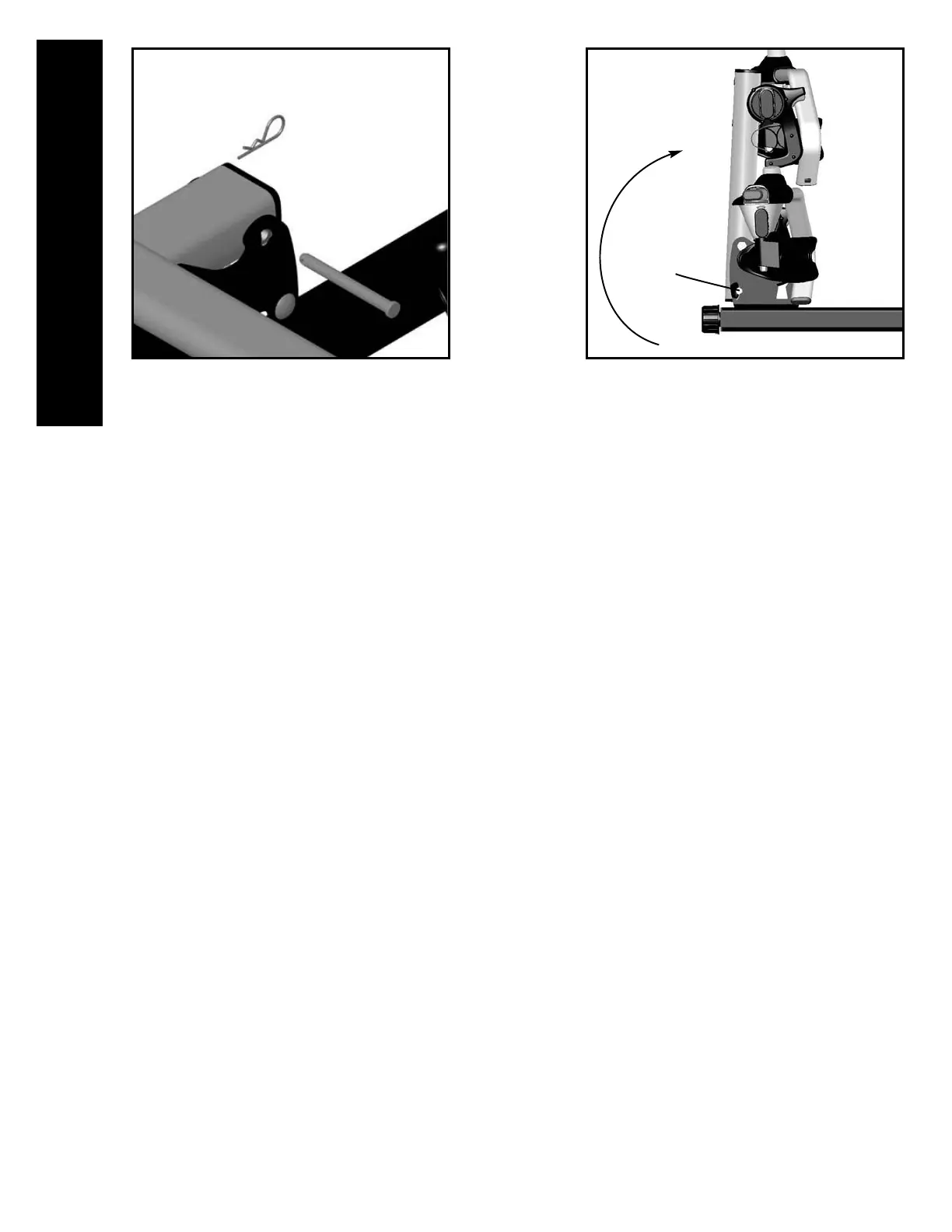

Insert hitch pin and lock into place as shown above. (Note:

Do not stick locking cable through hole, only hitch pin.)

Steel Pin

Pin with

Lanyard

Knob

1

2
