Strona 1/32
1
Serial ATA 4-Channel RAID
Installation Guide
04-0370E
Introduction
The Serial ATA 4-Channel RAID is an ultra high-speed
four channel Serial ATA controller for use in Pentium
class computers. It achieves burst data transfer rates up
to 150MB/s (1.5Gb/s) and supports various brands of
hard disk drives with capacities greater that 137GB.
Features and Benefits
• Compliant with Serial ATA Specification, revision
1.0
• Compliant with PCI Specification, revision 2.2
• Provides four independent channels to support up
to four Serial ATA drives
• Co-exists with on-board Ultra ATA controller
• Supports 32-bit wide PCI bus at 66MHz
• Supports RAID 0 (striping), RAID 1 (mirroring) and
RAID 10 (mirroring+striping) RAID Arrays and
Single and JBOD modes
• Lower pin count and voltage requirement, plus
better cabling over traditional Parallel ATA make
Serial ATA the controller of the future
System Requirements
• Pentium
or equivalent computer with one available
PCI slot
• Windows
®
8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/
64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server
2003 & 2008 (32-/64-bit) / 2000
2
Package Contents
• Serial ATA 4-Channel RAID
• 4 Serial ATA data cables (1M)
• 2 Dual Connector Serial ATA power cables
• 2 "Y" split power cables
• Driver CD
• Installation guide
Layout

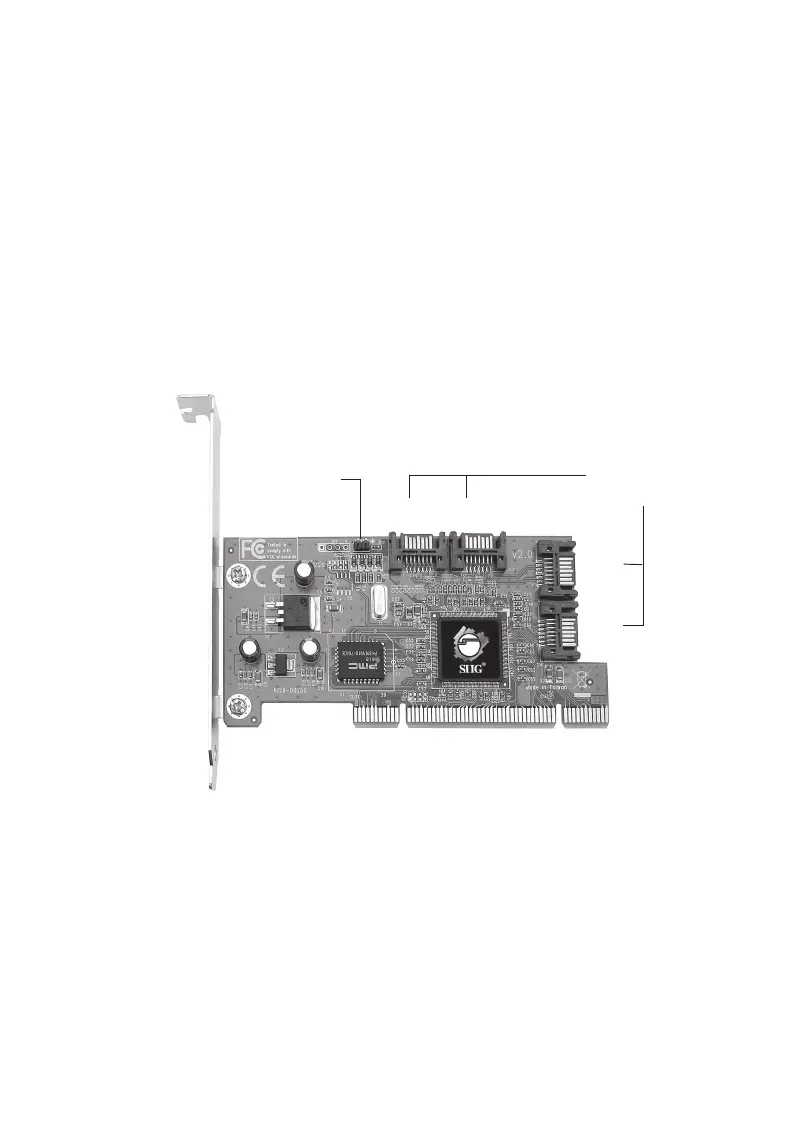

Figure 1. Serial ATA 4-Channel RAID layout
Serial ATA
Connectors
CN3
CN2
CN1
Hard Disk
LED Pins
CN4
3
Hardware Installation
General instructions for installing the card are provided
below. Since the design of computer cases and
motherboards vary, refer to your computer
’ s reference
manual for further information, if needed.
Static electricity discharge may permanently damage
your system. Discharge any static electricity build up in
your body by touching your computer case for a few
seconds. Avoid any contact with internal parts and
handle cards only by their external edges.
1. Turn OFF the power to your computer and any
other connected peripheral devices.
2. Unplug the power cord from the back of the
computer.
3. Remove your computer’ s cover.
4. Remove the slot bracket from an available PCI slot.
5. To install the card, carefully align the card's bus
connector with the selected PCI slot on the
motherboard. Push the board down firmly, but
gently, until it is well seated.
6. Replace the slot bracket's holding screw to secure
the card.
7. Now go to Device Connection to connect your
Serial ATA hard disk drives.
Device Connection
It is recommended to use identical hard drives for all
RAID configurations, however, it's possible to combine
hard drives of different sizes and makes.
1. Install your hard disk drive(s) in the chassis.
