Wireless Microphone

Package

Operating Instructions

Before operating the unit, please read this manual thoroughly

and retain it for future reference.

UWP-D11/D12/D16

UTX-B03

UTX-M03

UTX-P03

URX-P03

4-530-735-18 (1)

Table of Contents

Configuration of the Packages ..................3

UWP-D11 ..................................................... 3

UWP-D12 ..................................................... 4

UWP-D16 ..................................................... 5

Models available separately.......................... 6

Features .......................................................7

UWP-D11 ..................................................... 7

UWP-D12 ..................................................... 7

UWP-D16 ..................................................... 7

Name and Function of Parts.......................8

Body-pack transmitter (UTX-B03)............... 8

Hand-held microphone (UTX-M03)............. 9

Plug-on transmitter (UTX-P03).................. 11

Portable diversity tuner (URX-P03) ........... 12

Power Supply.............................................14

Inserting the batteries.................................. 14

Supplying power from a USB connector.... 15

Charging nickel metal hydride batteries..... 16

Attaching Accessories..............................16

Attaching accessories to the body-pack

transmitter (UTX-B03)...................... 16

Attaching accessories to the hand-held

microphone (UTX-M03) ................... 17

Attaching accessories to the plug-on

transmitter (UTX-P03) ...................... 17

Attaching accessories to the portable

diversity tuner (URX-P03) ................ 18

Operation ...................................................19

If noise is generated .................................... 19

Tuner Settings ...........................................20

Menu structure and operation ..................... 20

Setting the receive channel ......................... 21

Searching for available channels within a

group (Clear Channel Scan) .............. 21

Searching for active channels within a group

(Active Channel Scan) ...................... 22

Adjusting the monitor audio level .............. 22

Configuration menu .................................... 23

Transmitter Settings .................................25

Menu structure and operation ..................... 25

Setting the transmit channel........................ 26

Configuration menu .................................... 27

System Configuration Examples .............30

Error Messages .........................................31

Troubleshooting........................................32

Important Notes on Use............................34

Usage and storage ....................................... 34

Cleaning...................................................... 34

Specifications............................................34

Transmitter (UTX-B03/M03/P03).............. 34

Tuner........................................................... 36

Configuration of the Packages 3

Configuration of the Packages

This manual is for the UWP-D11/D12/D16 Wireless Microphone Packages. The contents of each package are described

below.

Some of the packages may not be available in certain countries or areas. In addition, the U90 model can only be used in

the USA.

The use of U90 transmitters requires a license and is subject to restrictions on frequency selection and channel spacing.

For details, consult your Sony dealer.

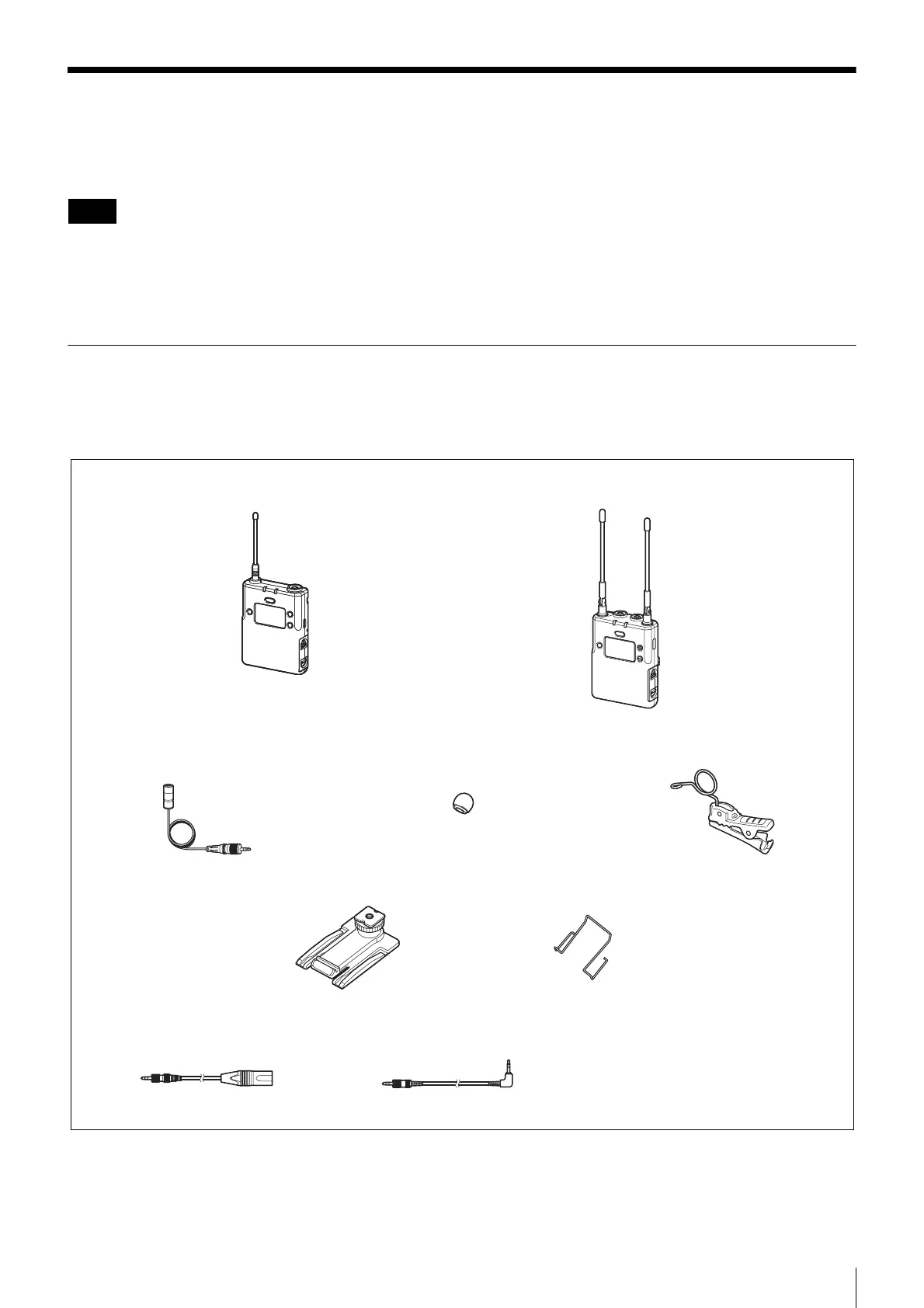

UWP-D11

The package consists of a body-pack transmitter (UTX-B03), a portable diversity tuner (URX-P03), and their accessories.

When used in conjunction with a compact camcorder, a mobile system for ENG (Electronic News Gathering) or EFP

(Electronic Field Production) applications can be constructed.

Note

Body-pack transmitter

(UTX-B03) (1)

Portable diversity tuner

(URX-P03) (1)

Supplied accessories

Wind screen (1)Omni-directional lavalier microphone (1) Holder clip (1)

Shoe mount adapter (1) Belt clip (2)

Battery case (1)

(Chinese model only)

Before Use (1)

Quick Start Guide (1)

CD-ROM (1)

Warranty card (1)

(North American and Korean models only)

Stereo mini plug-BMP conversion

cable (1)

XLR-BMP conversion output cable

for the URX-P03 (1)

Specyfikacje produktu

Marka:	Sony
Kategoria:	nieskategoryzowany
Model:	URX-P03
Wbudowany wyświetlacz:	Tak
Typ wyświetlacza:	LCD
Wysokość produktu:	82 mm
Szerokość produktu:	63 mm
Głębokość produktu:	23.8 mm
Waga produktu:	176 g
Liczba kanałów:	42 kan.
Zakres temperatur (eksploatacja):	0 - 50 °C
Przewodowa sieć LAN:	Nie
Rodzaj baterii:	AA
Napięcie:	5 V
Liczba baterii:	2
Ilość anten:	2
Typ zasilacza:	Bateria
Typ mocowania:	Mocowanie kamery
Współczynnik zawartości harmonicznych:	0.9 %
Stosunek sygnału do szumu:	96 dB
Czas pracy na zasilaniu akumulatorowym:	6 h
Typ anteny:	Wyjmowana
Odpowiedź częstotliwości mikrofonu:	23 - 18000 Hz
Zakres częstotliwości radiowych (RF):	638.025 - 694 MHz
Wyjście 3,5mm:	Tak
Typ częstotliwości roboczej:	Ultra wysoka częstotliwość (UHF)
