INFORMATION SHEET
Calibre Basin Mixer
Product code: CBM
160
80
100
40
35
48
sussextaps.com.au
5.0
litres per
minute
Licence No. 0124
In accordance with AS/NZS 6400
Sussex Taps Pty Ltd
WATER RATING
www.waterrating.gov.au
The more
stars the more
water efcient
AS/NZS 3718:2005
LIC. 20081
Calibre
Calibre Basin Mixer
Product code: Available options:
CBM Basin Mixer
CEBM Extended Basin Mixer
INSTALLATION GUIDE
PLUMBER NOTE
- On-site testing using higher water pressures must be
conducted with the Mixer in the closed position.
(STATIC TEST )
- Under no circumstances is the Mixer to be opened
when exceeding the maximum stated water pressure.
- At the completion of testing, do not relieve any high
water pressure by operating the Mixer.
- Exposing the internals of the Mixer Cartridge to higher
than specified water pressures will void the
manufacturers warranty.
INSTALLATION GUIDELINES
- The Mixer is supplied assembled, only the Fixing nut
and the Clamp need to be removed.
- After removing the mentioned parts, lower the Mixer
on to the mounting surface and fit the Flexible Hoses.
- In some cases the Flexible Hoses may need to be fed
through from under the mounting surface and then
attached. (Tighten using appropriate spanner)
- After securing the Flexible Hoses, fit Clamp and attach
the Fixing Nut from underneath.
- Before fully securing the Mixer ensure that the Base O
Ring is intact and the Mixer is properly centered over
the mounting surface hole.
- The Mixer mounting surface must be completely sealed
and water-tight.
- The 1/2” Fittings of the Flexible Hoses have a conical
seal, ensure that the matching threads are cut square
and burr free.
- Prior to connecting the Flexible Hoses, ensure all
pipework is thoroughly flushed and ensure pipework is
free of any dirt or debri.
- Isolating Stop Valves are recommended with all
installations. (not supplied)
- Connect the Flexible Hoses to Hot and Cold pipework
fittings, ensure the Hoses do not kink or become
twisted when tightening.
- Check all fittings and connections are secure and
water-tight.
BASE
O-RING
CLAMP
Hole Size
32-35mm
50mm Max.
Bench thickness
1/2" BSP Fittings
with conical Seals
FLEXIBLE HOSES
FIXING
NUT
CONCEPT One
3.0
litres per
minute
Licence No. 0124
In accordance with AS/NZS 6400
Sussex Taps Pty Ltd
WATER RATING
www.waterrating.gov.au
The more
stars the more
water efcient

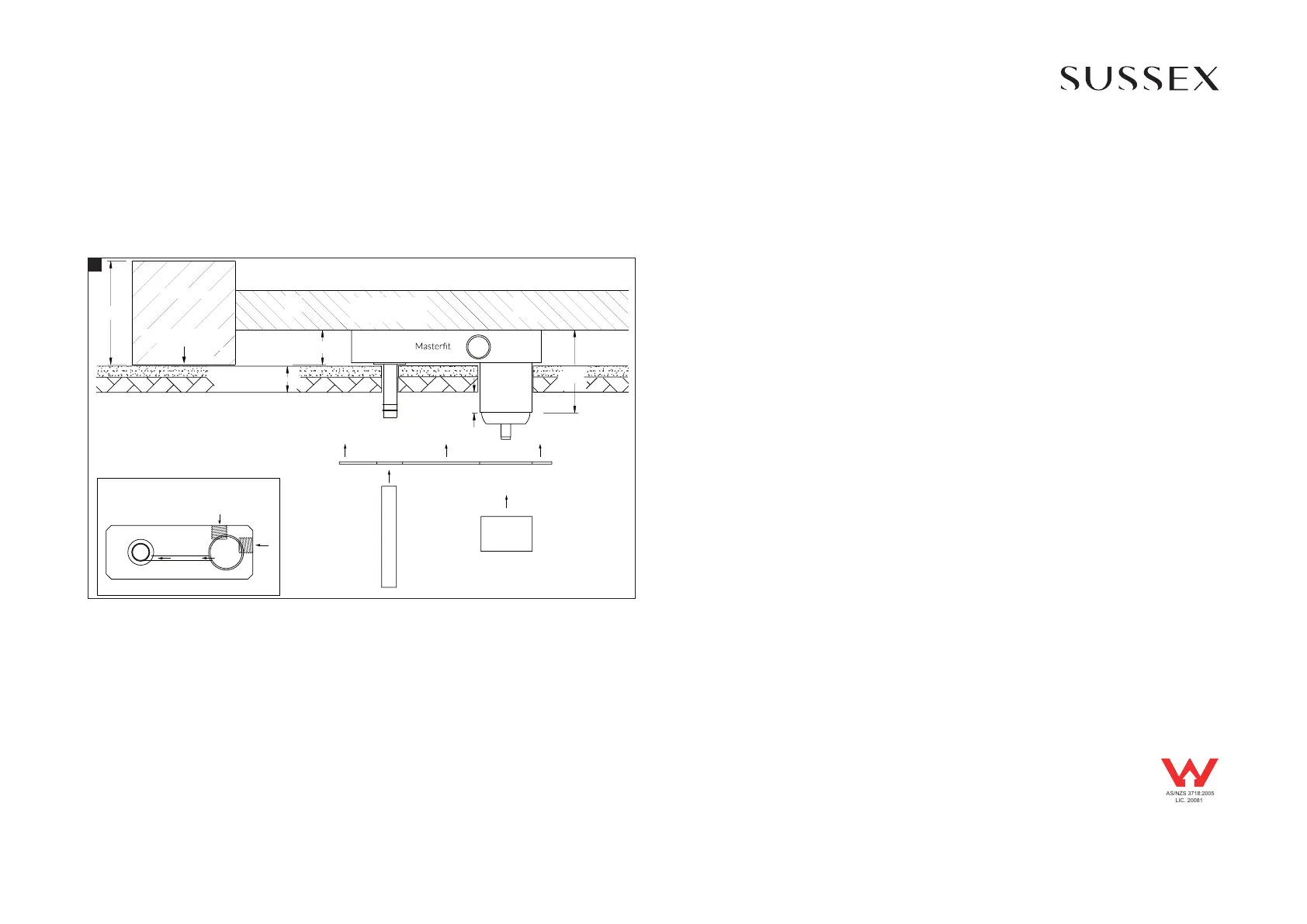

Product code
Suba
BWBMS160RH Wall basin mixer outlet system 160mm
BWBMS210RH Wall basin mixer outlet system 210mm
Wall basin mixer outlet system Dress kit
1
NOGGING
80 mm
Backplate
Finished
Wall Surface
Set
Screw
Handle
Body
Apply Silicone
Masterfit
Apply Silicone
Stud Face
2
NOGGING
Backplate
Masterfit
Stud Face
Finished
Wall Surface
Set
Screw
O-Rings
Bath Outlet
2. Outlet fit off
1. Mixer dress kit
- Remove Mixer protective cover.
- Using silicon, seal the wall surface around the Mixer.
- Apply a small amount of silicon to the rear of the backplate prior to mounting onto the wall.
- Fit the handle body onto the Mixer Cartridge Lever ensuring the Handle is fully engaged.
- Secure the Handle Body by tightening the Set screw using the Allen Key provided (tighten well).
- Apply a small amount of grease to the O-rings of the fitting.
- Carefully fit the Outlet ensuring the locating pins align with the Backplate.
- Secure the Outlet by tightening the Set Screw.
To complete the installation, operate the Mixer(s) checking the flow of both hot and cold water from Outlet.
Check all fittings and fixtures for water leaks.
sussextaps.com.au
Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2003
Recommended working water pressure 300-500 kpa. Maximum water temperature is 65 deg.c
