The Bogen Model CA5C is a momentary,rocker-type call switch designed for use1

in Bogen Multicom 2000

®

Communication Systems.When pushed and released once,

the switch signals an administrator to establish a call through a two-way speaker.

When pushed and released four times,the switch initiates an emergency call at the

administrative station.The switch may also function as a single-push emergency

switch,when the staff station is configured with Level 3 access.

The CA5C is designed for flush-mounting in a standard single-gang outlet box.1

Figure 1 illustrates the pr

oper connection.The shield must not be grounded to the

building ground at the outlet box or the speak

er.

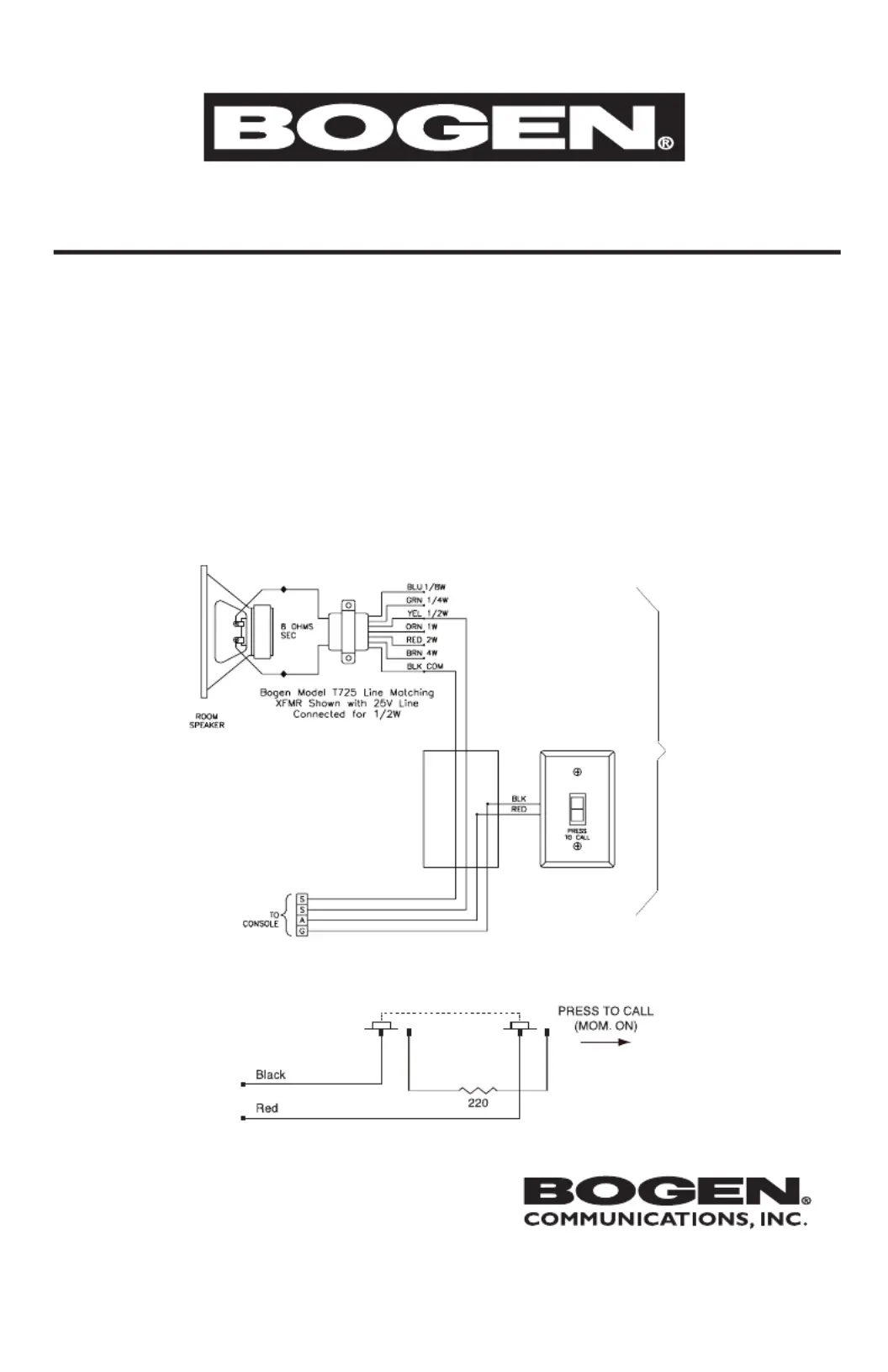

Call-In/EmergencySwitchModel CA15C

Figure 1 -CA15C Connecting Diagram

Figure 2 -CA15C Schematic Diagram
