EN
QUICK REFERENCE GUIDE
onAir IP Panel Min QRG Rev. 6
About This Guide
The onAir IP Panel Min Quick Reference Guide (QRG) has basic product information such as mounting, menu options,
and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration
.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and
Germany: www.chauvetlighting.eu/warranty-registration
.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the
period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This
warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this
warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows
the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This
warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to
country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands,
Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 19.7 in
(50 cm) is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord
exclusively available from the manufacturer or his service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a
similar qualified person.
• The luminaire is intended for professional use only.
• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid
ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow
product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product’s housing may be hot when lights are operating.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 7.87 in (20 cm) of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT submerge this product (IP65). Regular outdoor operation is fine.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket or the handles to carry this product.
• In the event of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
• The minimum startup temperature is -4°F (-20°C). Do not start the product at lower temperatures.
• The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower temperatures.
FCC Compliance
This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
RF Exposure Warning for North America, and Australia
Warning! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or
return a product. Refer to Contact Us
at the end of this QRG for contact information.
EN
2
onAir IP Panel Min QRG Rev. 6
QUICK REFERENCE GUIDE
What is Included
AC Power
This product has an auto-ranging external power supply that can work with an input voltage range of 100–240 VAC, 50/60
Hz and converts it to a 28 V DC, 50 W, 3-pin IP65 XLR output.
AC Plug
Installing the Power Supply

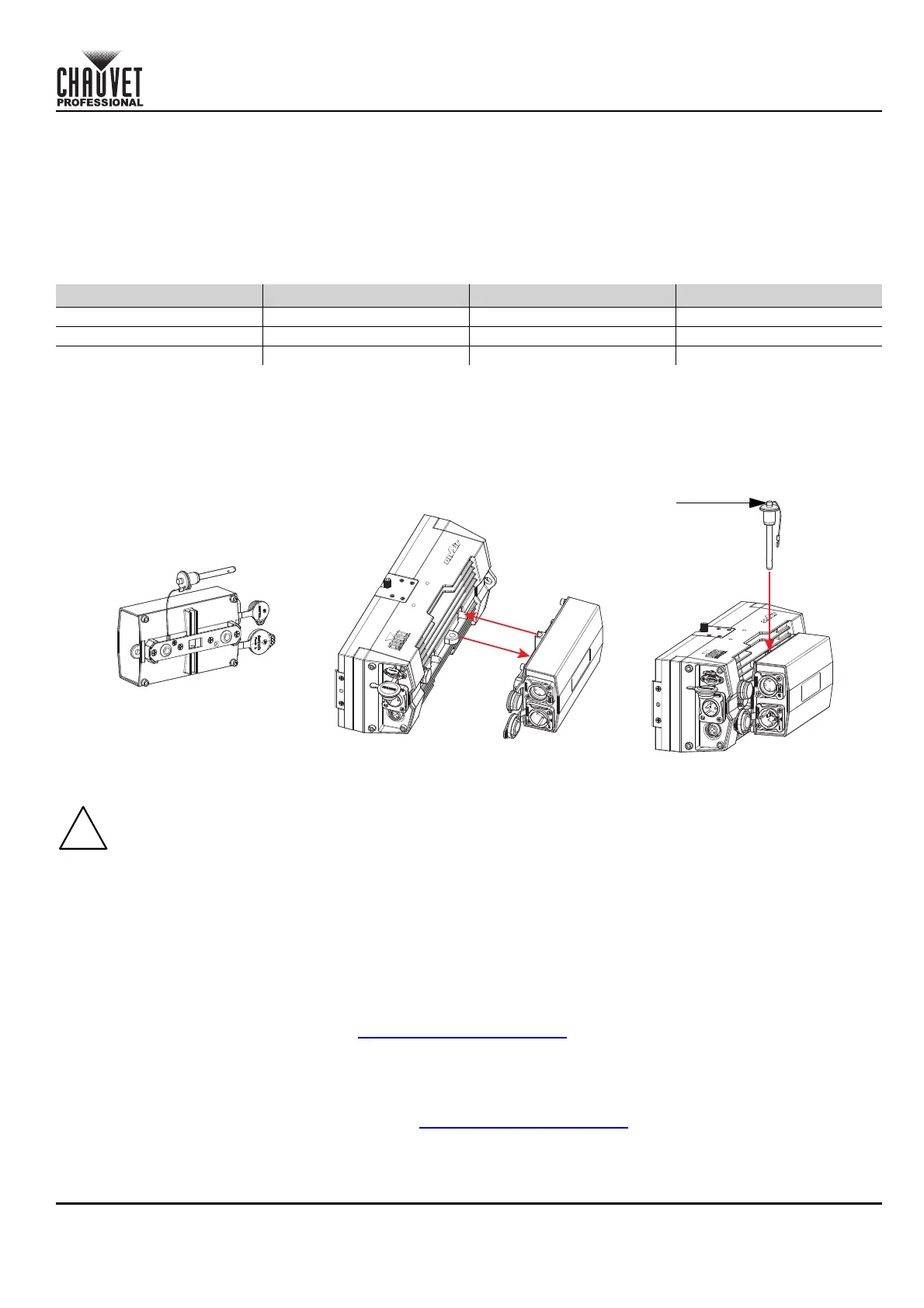

The power supply attaches to the onAir IP Panel Min with a retaining pin.
1. Align the power supply so the loop on the back of the product and the loop on the power supply line up and fit into
each other.
2. Press and hold the latch button down on the retaining pin and insert it through the sets of loops on the product
and power supply.
3. Release the latch button.
DC Power
This product has a 3-pin IP65 XLR power input port that can work with an input voltage of 28 V DC, 50 W.
Signal Connection
The onAir IP Panel Min will work with a controller or controller software using a 5-pin DMX or wireless Lumenradio
CRMX™ connection. See the User Manual for information about how to connect and configure the product for these
signals.
Control Personalities
The onAir IP Panel Min uses CRMX™ for its control personalities: 1Ch, 3Ch, 4Ch, 5Ch, 6Ch, 8Ch, 10Ch, 11Ch,
15Ch, XYBasic(6), and XYExtended(10).
DMX Connection
The onAir IP Panel Min will work with a DMX controller using a 5-pin serial DMX connection or a wireless CRMX™
connection. A DMX Primer is available from www.chauvetprofessional.com
.
RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally
along an existing DMX connection. Check the DMX controller’s User Manual or with the manufacturer as not all DMX
controllers have this capability. The onAir IP Panel Min supports RDM protocol that allows feedback to make changes to
menu map options. Download the User Manual from www.chauvetprofessional.com
for more details.
• onAir IP Panel Min
• Seetronic Powerkon IP65 cable
• DMX mini XLR adapter
• Ball-head mount
• Baby pin receiver
• Quick Reference Guide
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
