Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.121123

SWRNS-63M

Radio Replacement with Steering Wheel Control Retention

1 of 3

RADIO REPLACEMENT

SWC RETENTION

+

R

INTERFACING SOLUTIONS

-Pre-programmed to retain factory Medium Speed CAN-Data Bus Steering Wheel Controls.

-Includes antenna adapter.

PRODUCT FEATURES:

PARTS INCLUDED:

SWRNS-63M Harness

Antenna

Adapter

INSTALLATION DIAGRAM FOR AMPLIFIED VEHICLES:

SWRNS-63M MODULE

SWC CablesUSB Retention Cable

-Retains factory phone buttons.

-Retains factory USB input.

-Retains factory camera (not 360 panoramic camera).

-Provides outputs for

Reverse & parking brake.

-Retains factory auxilary input

AFTERMARKET

RADIO

+12V Constant Yellow

+12V ACC Red

Ground Black

Illumination (+)Orange

Illumination (-)Orange/White

Amp Turn On

Blue/ White

Right Front (+)Gray

Right Front (-) Gray/Black

Left Front (+) White

Left Front (-) White/Black

Right Rear (+) Violet

Right Rear (-) Violet/Black

Left Rear (+)Green

Left Rear (-) Green/Black

VSS (Vehicle Speed Signal)

Brown/White

Black

Violet/White

Reverse Gear Output

Parking Brake Output

Yellow/Black

(with Ring Terminal)

TO FACTORY

HARNESS

12-Pin Black

Connector

BLUE/ Power Antenna

4-Pin

Connector

40 PIN

20 PIN

Yellow RCA

(Retain OE Camera)

Rear View Camera Signal

Option A:

Option B:

Cap or insulate if

not being used

BLUE / YELLOW

Insulate with tape

if not being used

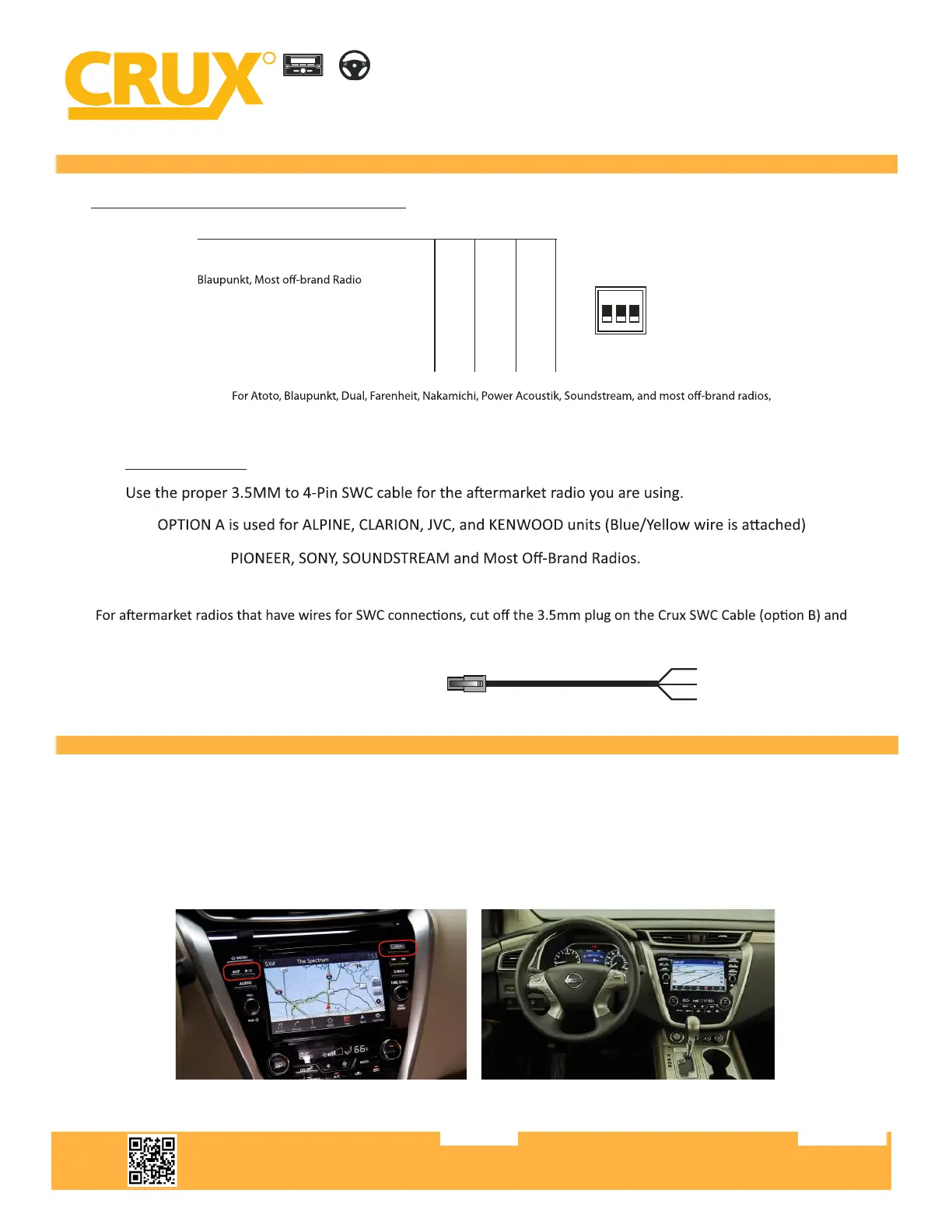

3.5MM SWC CABLES (Option A or B)

Use the proper 3.5MM to 4-Pin cable for your radio.

Plug in the selected 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

To aftermarket

radio SWC wire

or 3.5mm port

1 2 3

ON

12v to 6v

Converter

Audio Input Red/White RCA

(Retains Factory AUX Input)

•For Amplied Systems Please Do Not Cut RCA to get better audio quality

**

Please see page 2 for note

USB-Min2

USB Retention Adaptor

(included in kit)

Chassis Ground

for Select 2015 -2016 NISSAN MURANO Vehicles w/ Navigation
