Przeczytaj poniżej 📖 instrukcję obsługi w języku polskim dla Epcom TT-676 (3 stron) w kategorii przedłużacz AV. Ta instrukcja była pomocna dla 36 osób i została oceniona przez 18.5 użytkowników na średnio 5.0 gwiazdek

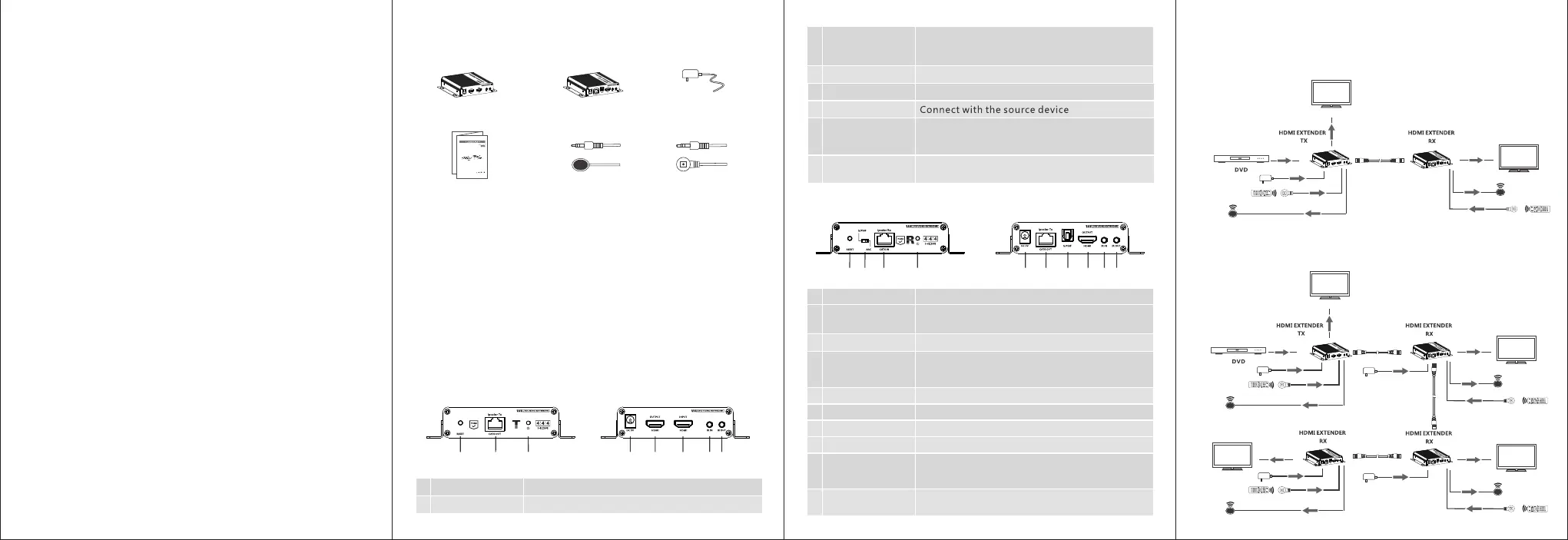

Strona 1/3
· Important Safety Notice
· Introduction
· Features
· Installation Requirements
· Interfaces
· Installation Procedures
1. Do not mix up HDMI to RJ45 transmitter and RJ45 to HDMI receiver
before installation.
2. Do not hot plug when it is working.
3. Use DC5V/2A power supply only. Make sure specification matched
if using 3rd party adapters.
4. Static electricity will cause damage of the device, please do ESD
protection when using the device.
1. Zero latency, lossless compression.
2. 4K@60Hz HDMI signal can be transmitted 40-70 meters through a
CAT5E/6/6A/7 network cable.
3. Supports up to 10 receivers in cascade, auto adapt to display resolution.
4. The receiver supports S/PDIF output.
5. Supports Dolby audio(Dolby Digital Plus/Dolby TrueHD/Dolby Digital/Dolby atmos)
6. Supports HDR(YUV4:4:4), maximum transmission rate 18Gbps.
7. Transmitter support one HDMI loop-out
8. Support bi-directional IR passback function (20～60KHz), cascade when
10 receiver available
9. One receiver can be powered by the transmitter via network cable, Only
on the first receiver.
10. Anti - lightning, anti - surge, anti - static protection.
11. Metal casing, stable and durable.
Transmitter unit x1pc Receiver unit x1pc
HDMI OUTPUT
1. HDMI source device (compute graphics card, DVD, PS3, )HD
monitoring equipment etc.
2. HDMI display device like SDTV, HDTV, projector with HDMI port.
3. UTP/STP CAT5E/CAT6/CAT6A/CAT7 cable. Follow standard IEEE-568B,
It is recommended to select a network cable with less loss and crosstalk.
2. Receiver (RX)
1. Connection
IR blaster extension
cable x1pcs
IR receiver extension
cable x1pcs
DC5V/2A x1pc
DC5V input
When there is power and no HDMI signal, the
indicator will flash, when there is HDMI signal,
the indicator will light solid blue
This HDMI Extender includes a transmitter unit and a receiver unit,
allows HDMI signal to be transmitted up to 40 meters at 4K resolution
using a CAT5E network cable, and up to 70 meters at 4K resolution
using a CAT6/6A/7 network cable. It supports bi-directional IR passback
with a wide IR frequency 20-60KHz. The receiver can be powered by the
transmitter (Connect the power supply to the transmitter only), please
note that this HDMI Extender can not use with switch or router. It is perfect
for outdoor advertising, video clips, monitor system, home entertainment,
and conference, etc.
· Package Contents
1. Transmitter (TX)
User manual x1pc
Connect with HDMI display device
Connect with DC5V/2A power adapter
HDMI INPUT
IR IN
Connect with IR receiver extension cable, please
make sure the remote control used is within the
effective range
Connect with IR blaster extension cable, please
get closer to the source device while using
IR OUT
③
④
⑤
⑦
⑥
⑧
DC5V input
Connect with network cable
When there is power and no HDMI signal, the
indicator will flash, when there is HDMI signal,
the indicator will light solid blue
Connect with DC5V/2A power adapter
IR IN
Connect with IR receiver extension cable, please
make sure the remote control used is within the
effective range
Connect with IR blaster extension cable, please
get closer to the source device while using
IR OUT
①
②
③
④
⑤
⑦
⑥
⑧
Press to restart the device
HDMI OUTPUT
Connect with HDMI display device
⑩
S/PDIF OUT Output digital audio signal.
Connect with network cable
①
②
RJ45 signal output
Reset button Press to restart the device
HDMI IN
Note: Only the TX needs to be powered when one to one connection.
one to one:
IR OUT
IR IN
IR OUT
IR IN
HDMI OUT
HDMI Display
Network cable
HDMI Display
IR OUT
IR IN
IR OUT
IR IN
HDMI DisplayHDMI Display
one to many：
IR OUT
IR IN
IR OUT
IR IN
...10pcs
Network cable
Network cable
HDMI IN
HDMI OUT
HDMI OUTHDMI OUT
HDMI Display
HDMI Display
Power/Signal
indicator
RJ45 signal input
Reset button
Power/Signal
indicator
RJ45 signal output
Connect with network cable
① ② ③ ④ ⑤ ⑥ ⑦ ⑧
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩
TM
TM
TM
TM
TM
TM
TM
TM
⑨
Audio switch
Choose to decode audio from HDMI or ARC
output from fiber optic interface
