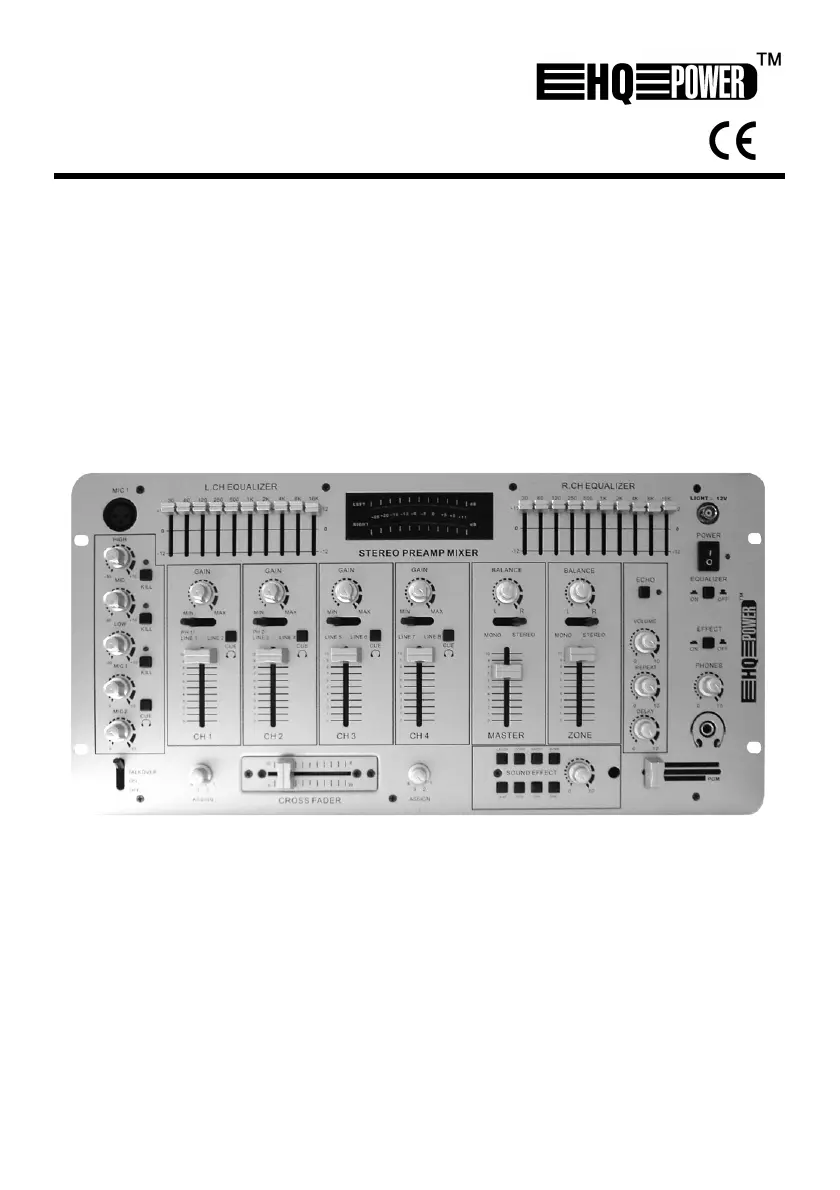

Strona 1/22

PROMIX400SF2

PROFESSIONAL 4-CHANNEL MIXER + EQ + SOUND EFFECTS

PROFESSIONEEL 4-KANAALS MENGPANEEL+ EQ + EFFECTEN

TABLE DE MIXAGE PROFESSIONNELLE 4 CANAUX + EG + EFFETS

MESA DE MEZCLAS PROFESIONAL 4 CANALES + EQ + EFECTOS

PROFESSIONELLES 4-KANAL-DISCOMISCHPULT+ EQ + EFFEKTE

USER MANUAL 3

GEBRUIKERSHANDLEIDING 7

NOTICE D’EMPLOI 11

MANUAL DEL USUARIO 15

BEDIENUNGSANLEITUNG 19

PROMIX400SF2

Error! Unknown document property name. (22/07/2008)

HQPOWER

PROMIX400SF2

Error! Unknown document property name. (22/07/2008)

HQPOWER

User manual

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device

after its lifecycle could harm the environment. Do not dispose of the unit (or

batteries) as unsorted municipal waste; it should be taken to a specialized

company for recycling. This device should be returned to your distributor or to a

local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this

device into service. If the device was damaged in transit, don't install or use it and contact

your dealer.

2. Safety Instructions

• Damage caused by disregard of certain guidelines in this manual is not covered by the

warranty and the dealer will not accept responsibility for any ensuing defects or

problems.

• Switch off and disconnect the mixer from the mains prior to connection to the amplifier

and other devices.

• Avoid using excessively long cables. Make sure all plugs and jacks are in perfect

working order to avoid hum, noise and pops that could damage speakers.

• Never use spray cleaners on knobs and sliders. Clean the mixer regularly using a dry

and clean cloth.

• There are no user-serviceable parts. Opening the mixer will void the warranty.

• Keep this device away from rain and moisture. Never place beverages on top of the

mixer.

3. General Guidelines

• Use high-quality shielded cables with low capacitance throughout the system.

• Route one cable at the time. Pay attention to the labelled audio input and output jacks.

• Always begin with the master faders, volume controls and the amplifier volume at

minimum position. Gradually turn up the volume after connection is completed.

• Use the controls with restraint. Rapid movements may damage the speakers due to

amplifier clipping.

4. Installation

Connect all stereo input sources, microphone and headphones. Make sure all faders and

volume controls are set to 0. Finally, connect all stereo outputs to the power amplifier

and/or tape decks. Plug the mixer to the mains using the power cord.

NOTE: Use the RCA connections with low-capacitance stereo cables.

5. Description

1. MIC DJ 1

3-pin XLR connection for microphones.

2. TONE CONTROL FOR DJ

Level controls (high, mid and low) for the DJ signal (+10 dB ~ -30 dB).

Specyfikacje produktu

Marka:	HQ Power
Kategoria:	Konsola miksująca
Model:	PROMIX400SF2
Kolor produktu:	Srebrny
Wysokość produktu:	112 mm
Szerokość produktu:	482 mm
Głębokość produktu:	240 mm
Waga produktu:	4700 g
Impedancja mikrofonu:	600 Ω
Liczba kanałów:	4 kan.
Pobór mocy:	230 W
Mikrofon:	Tak
Zasięg częstotliwości:	20 - 20000 Hz
Ustawienia korektora:	Tak
Wejścia Phono (RCA):	2
Współczynnik sygnału do szumu mikrofonu:	70 dB
Wejścia liniowe (RCA):	8
Mikser DJ:	Tak
Stosunek sygnału do szumu (SNR):	80 dB
