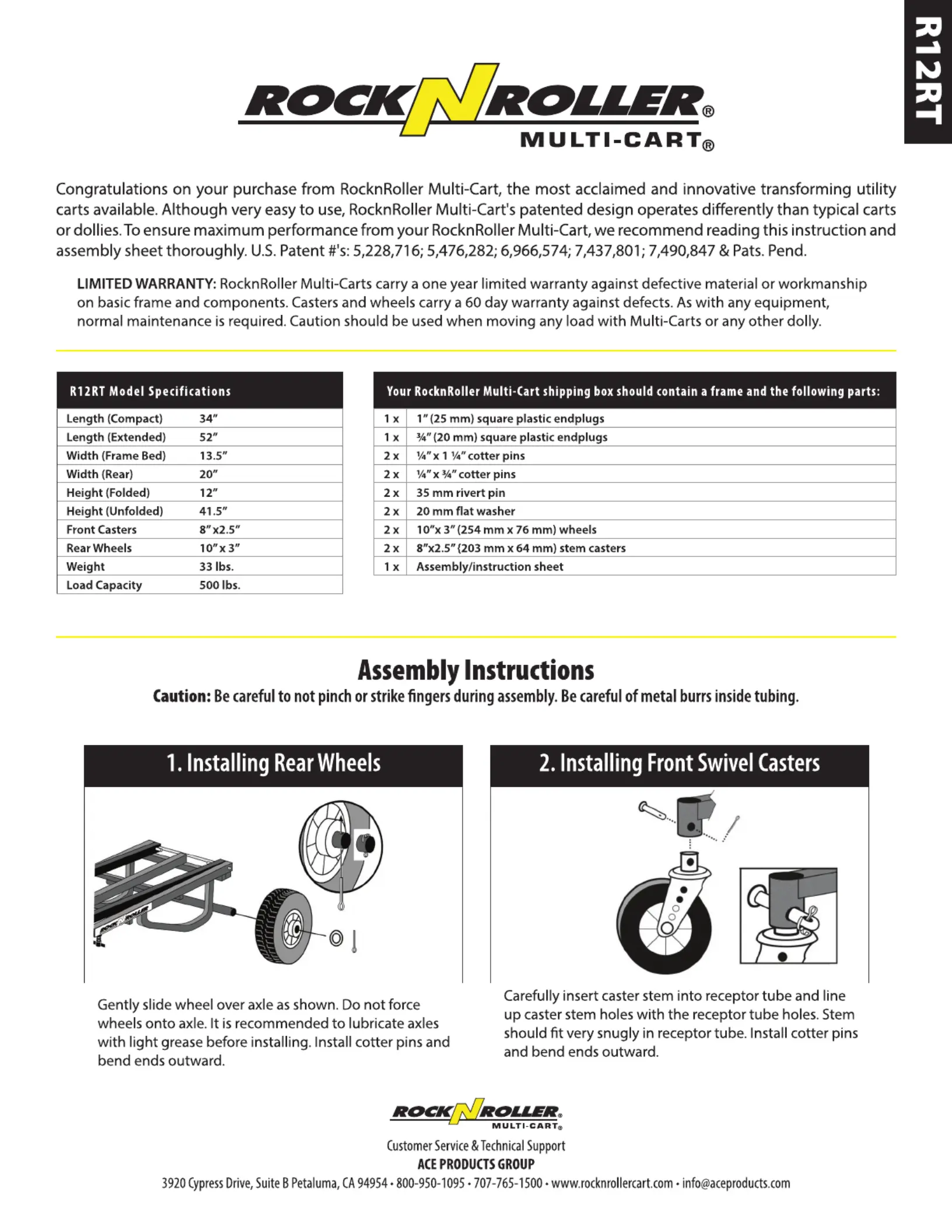

R12RT Model Specifications Your RocknRoller Multi-Cart shipping box should contain a frame and the following parts:
Length (Compact) 34” 1 x 1” (25 mm) square plastic endplugs
Length (Extended) 52” 1 x ¾” (20 mm) square plastic endplugs
Width (Frame Bed) 13.5” 2 x ¼” x 1 ¼” cotter pins
Width (Rear) 20” 2 x ¼” x ¾” cotter pins
Height (Folded) 12” 2 x 35 mm rivert pin
Height (Unfolded) 41.5” 2 x 20 mm flat washer
Front Casters 8” x2.5” 2 x 10”x 3” (254 mm x 76 mm) wheels
Rear Wheels 10” x 3” 2 x 8”x2.5” {203 mm x 64 mm) stem casters
Load Capacity 500 lbs.
1. Installing Rear Wheels
Gently slide wheel over axle as shown. Do not force
wheels onto axle. It is recommended to lubricate axles
with light grease before installing. Install cotter pins and
bend ends outward.
2. Installing Front Swivel Casters
Carefully insert caster stem into receptor tube and line
up caster stem holes with the receptor tube holes. Stem
should t very snugly in receptor tube. Install cotter pins
and bend ends outward.
