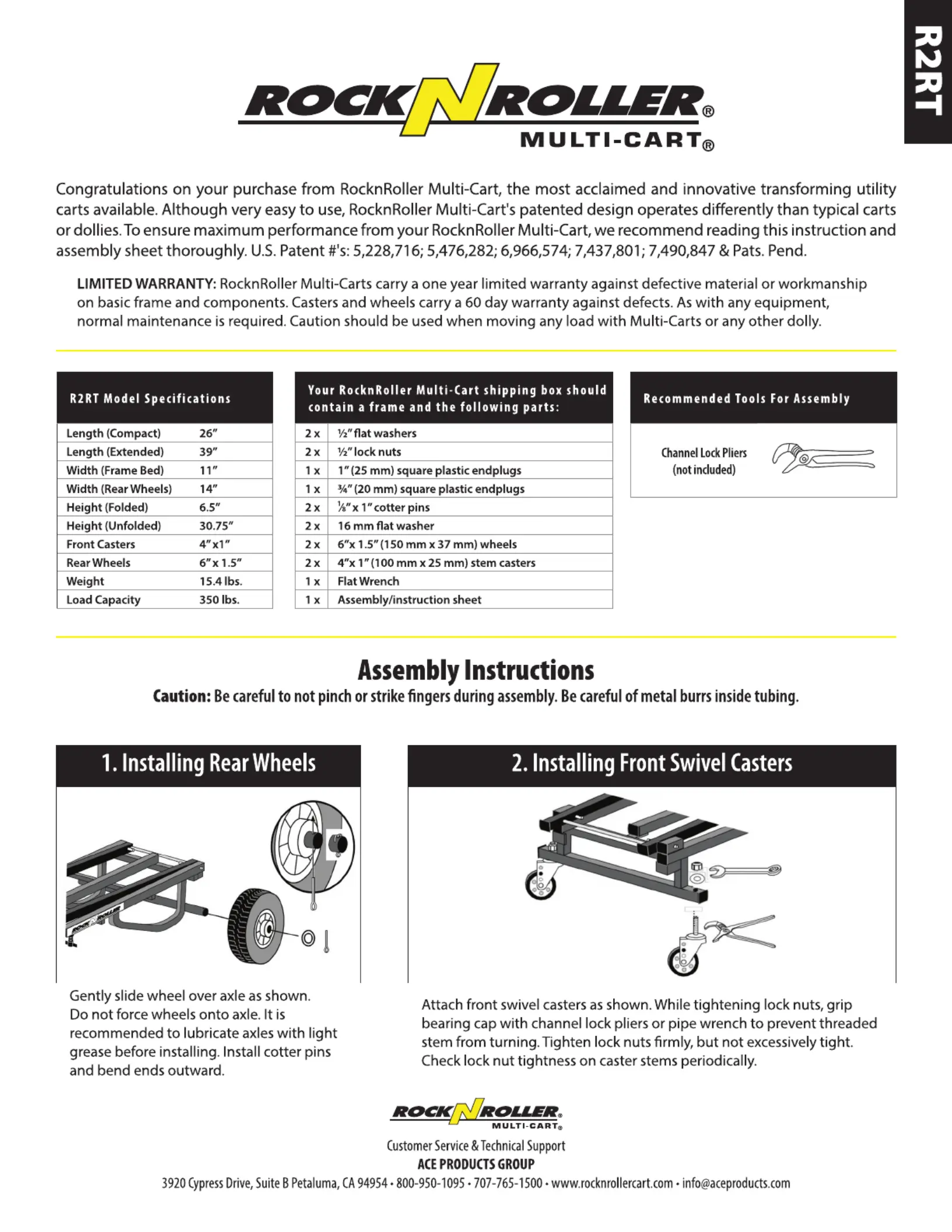

R2RT Model Specifications
Your RocknRoller Multi-Cart shipping box should
contain a frame and the following parts:
Recommended Tools For Assembly
Length (Compact) 26” 2 x ½” at washers
Length (Extended) 2 x ½” lock nuts39”
Channel Lock Pliers
(not included)
Width (Frame Bed) 1 x 1” (25 mm) square plastic endplugs11”
Height (Folded) 2 x x 1 cotter pins6.5 18
Height (Unfolded) 2 x 16 mm at washer30.75”
Front Casters 4” x1 2 x 6”x 1.5” (150 mm x 37 mm) wheels
Rear Wheels 6” x 1.5 2 x 4”x 1” (100 mm x 25 mm) stem casters
Weight 15.4 lbs. 1 x Flat Wrench
Load Capacity 350 lbs. 1 x Assembly/instruction sheet
1. Installing Rear Wheels
Gently slide wheel over axle as shown.
Do not force wheels onto axle. It is
recommended to lubricate axles with light
grease before installing. Install cotter pins
and bend ends outward.
2. Installing Front Swivel Casters
Attach front swivel casters as shown. While tightening lock nuts, grip
bearing cap with channel lock pliers or pipe wrench to prevent threaded
stem from turning. Tighten lock nutsrmly, but not excessively tight.
Check lock nut tightness on caster stems periodically.
