Strona 1/13

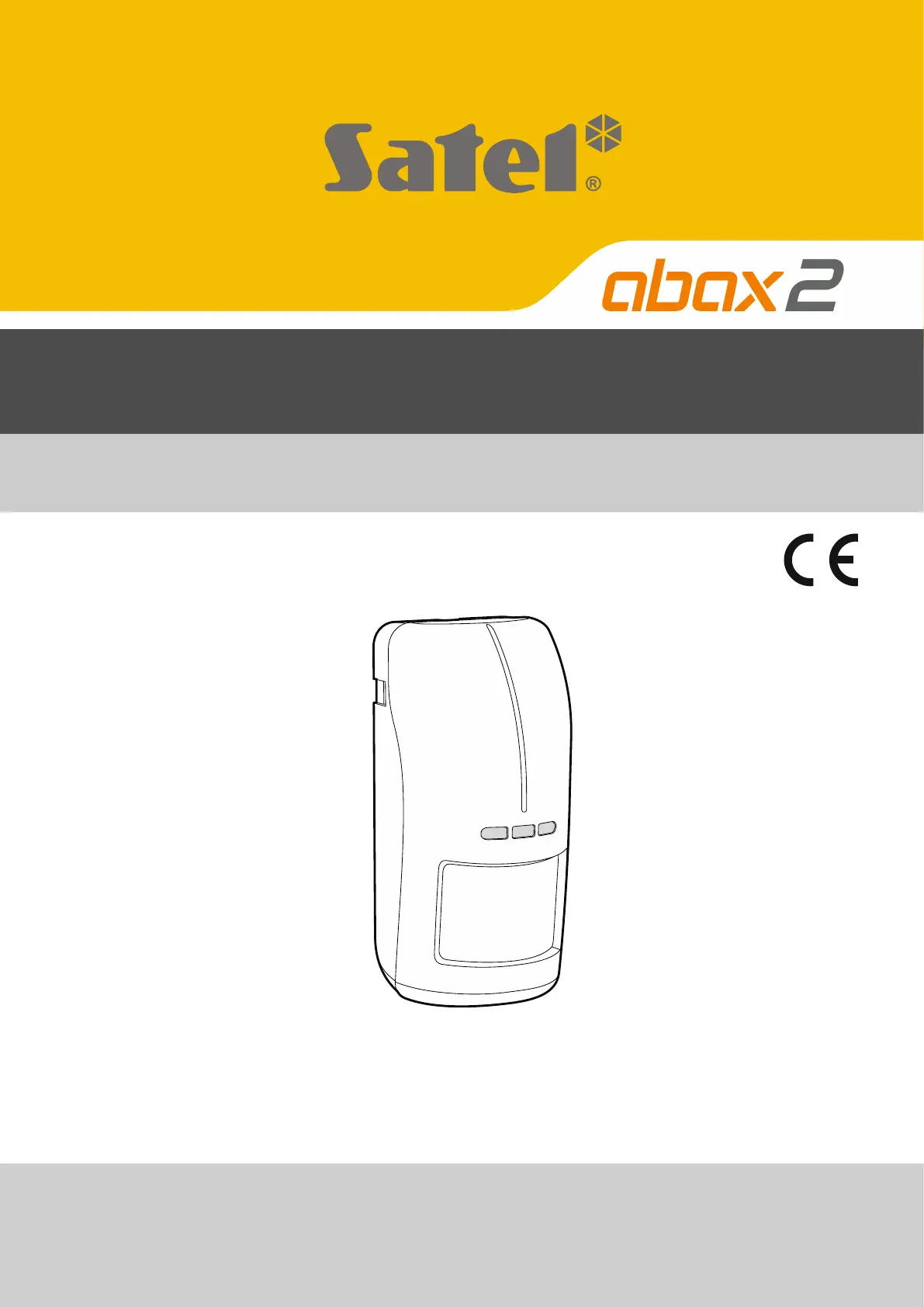

AOD-210
Wireless outdoor dual technology motion detector
Firmware version 1 -210_ / 1.0 aod en 03 21
SATEL sp. z o.o. ul. Budowlanych 66 - POLAND • • 80 298 Gdańsk •
tel. +48 58 320 94 00
www.satel.eu
IMPORTANT
The device should be installed by qualied personnel.
Prior to installation, please read carefully this manual.
Changes, modications or repairs not authorized by the manufacturer shall void your rights
under the warranty.
Rating plate of the device can be found on the rear side of the electronics module.
SATEL aims to continually improve the quality of its products, which may result in changes in
their technical specications and software. Current information about the changes being
introduced is available on our website.
Please visit us at:
https://support.satel.eu
Hereby, SATEL sp. z o.o. declares that the radio equipment type AOD-210 is in
compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity
is available at the following internet address: www.satel.eu/ce
In the EU, th radio equipment is only permitted to operate in the 868 MHz frequency is
band.
The following symbols may be used in this manual:
- note,
- caution.
The AOD-210 outdoo detector detects movement in a protected area. It is designed for r
operation within the ABAX 2 / ABAX two-way wireless system. This manual applies to the
detector with rmware version , which is supported by: 1.01
2: ABAX
– ACU-220 / ACU-280 controller,
– ARU-200 repeater.
ABAX:
– ACU-120 / ACU-270 controller (rmware version 5.04 or newer),
– ARU-100 repeater (rmware version 2.02 or newer),
– INTEGRA 128-WRL control panel (rmware version 1.19 or newer and firmware
version of processor used to operate ABAX system 3.10 or newer).
1 Features
Motion detection with two sensors: passive infrared sensor (PIR) and microwave sensor
(MW).
Adjustable detection sensitivity of both sensors.
Digital motion detection algorithm for both sensors.
Digital temperature compensation.
Pet immunity up to 20 kg.
Immunity to false alarms caused by moving but not changing their position objects
(e.g. branches of trees).
Creep zone.
Dusk sensor.
Encrypted two-way radio communication in the 868 MHz / MHz frequency band (AES 915
standard for the ABAX 2 system).
Transmission channel diversity 4 channels for automatic selection of the one that will –
enable transmission without interference with other signals in the 868 MHz / MHz 915
frequency band (ABAX 2 system only).
Remote update of detector rmware (ABAX 2 system only).
Remote conguration.
Built-in temperature sensor (temperature measurement range from - 40°C to +55°C).
Three LED indicators.
Supervision of motion detection system.
2 system only). “ECO” option for longer battery life (ABAX
Battery status control.
Tamper protection against enclosure opening and removal from mounting surface.
Weatherproof enclosure featuring a very high mechanical strength.
2 Description
The detector occupies two positions on the device list:
the rst one: motion detector,
the other one: dusk detector.
Optionally the detector can occupy one position only the motion detector is supported. –
