Installation and
User's Manual for
Flaked Ice Machine with Storage Bin
Model AFE424
Air or Water Cooled
Introduction
To the owner or user: This service manual is
intended to provide you, and the maintenance or
service technician, with the information needed to
install, start up, clean, maintain and repair this
product.
The AFE424 is an ice machine that produces
flaked ice and stores it in a insulated bin. It
automatically maintains the level of ice by turning
on when the ice level falls and switches off when it
is full.
This unit in serviceable in place; the ice storage bin
and hood may be removed from the chassis to
allow service access without removing the ice
machine from its installed location. The
refrigeration system uses R-134a as the
refrigerant.
Keep this manual for reference.
AFE424
March 2010
Page 1
Table of Contents
Specifications 路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路 Page 2
For The Installer: Environmental Limitations 路路路路路路路路路路路路路路路路路路路路路路路路路路路 Page 3
Installation 路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路 Page 4
Installation: Water and Drain 路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路 Page 5
Installation 路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路 Page 6
Removal of the Cabinet 路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路 Page 7
Initial Start Up 路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路 Page 8
Maintenance and Cleaning 路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路 Page 9
Maintenance and Cleaning 路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路 Page 10
Maintenance and Sanitation 路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路 Page 11
Maintenance - Bearing 路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路 Page 12
What to Do Before Calling for Service 路路路路路路路路路路路路路路路路路路路路路路路路路路路路路路 Page 13
Specifications
The unit is equipped with an electrical power cord,
but should only be plugged into a circuit dedicated
to the ice machine.
AFE424
March 2010
Page 2
14.25
IN
Model Number Dimensions
(w/o) legs
HxWxD
Basic
Electrical
Ice
Type
Condenser
Type
Typical
Amps
Maximum
Fuse
AFE424A-1 33 x 24
1
4
x 24 115/60/1 Flake Air 9 15
AFE424W-1 same same same same same same
AFE424A-6 33 x 24
1
4
x 24 230/50/1 Flake Air 9 15
A scoop and legs (6") are included.

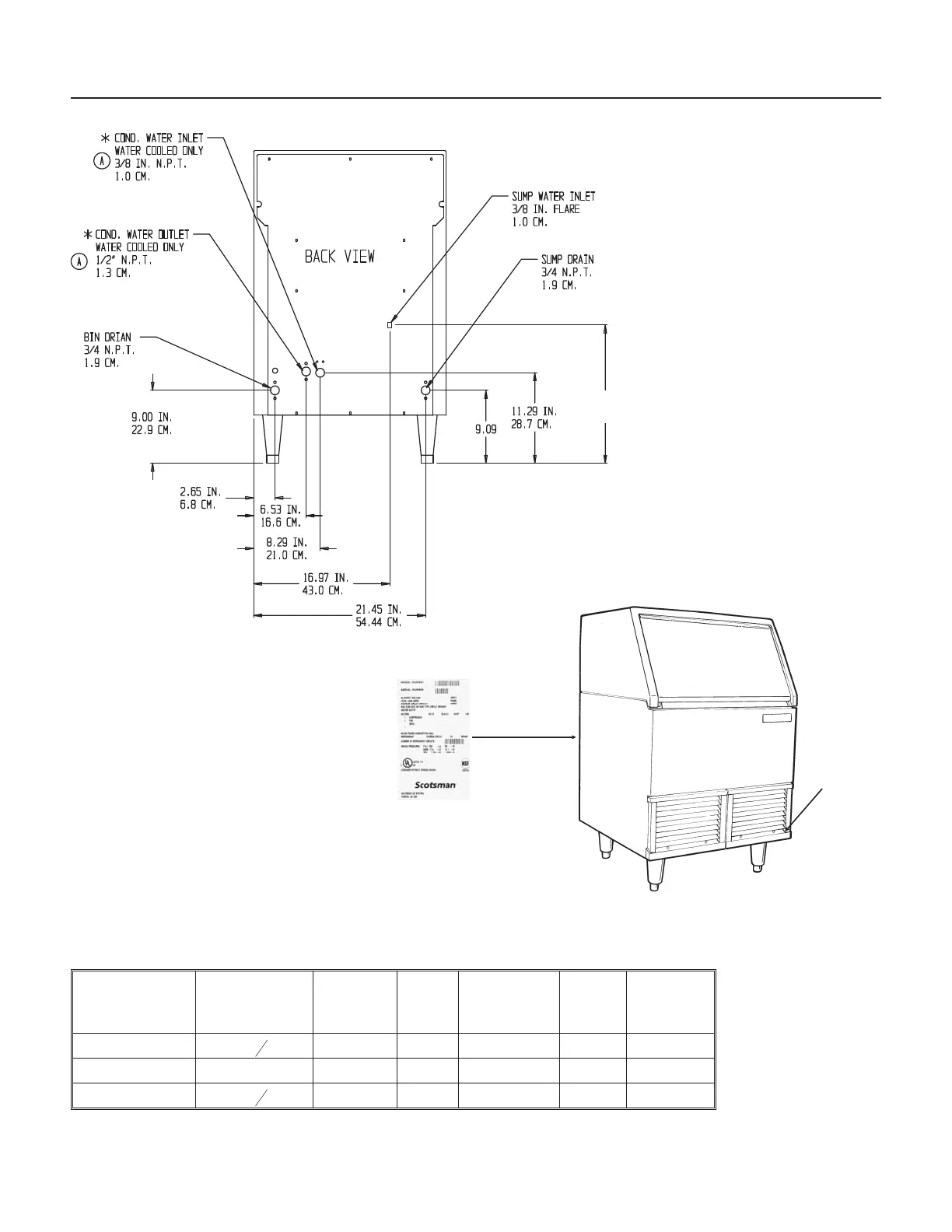

SERIAL
NUMBER
PLATE
The nameplate is located
on the back panel.
A serial number plate is
located behind the right
grill, in front of the control
box, on the base.
