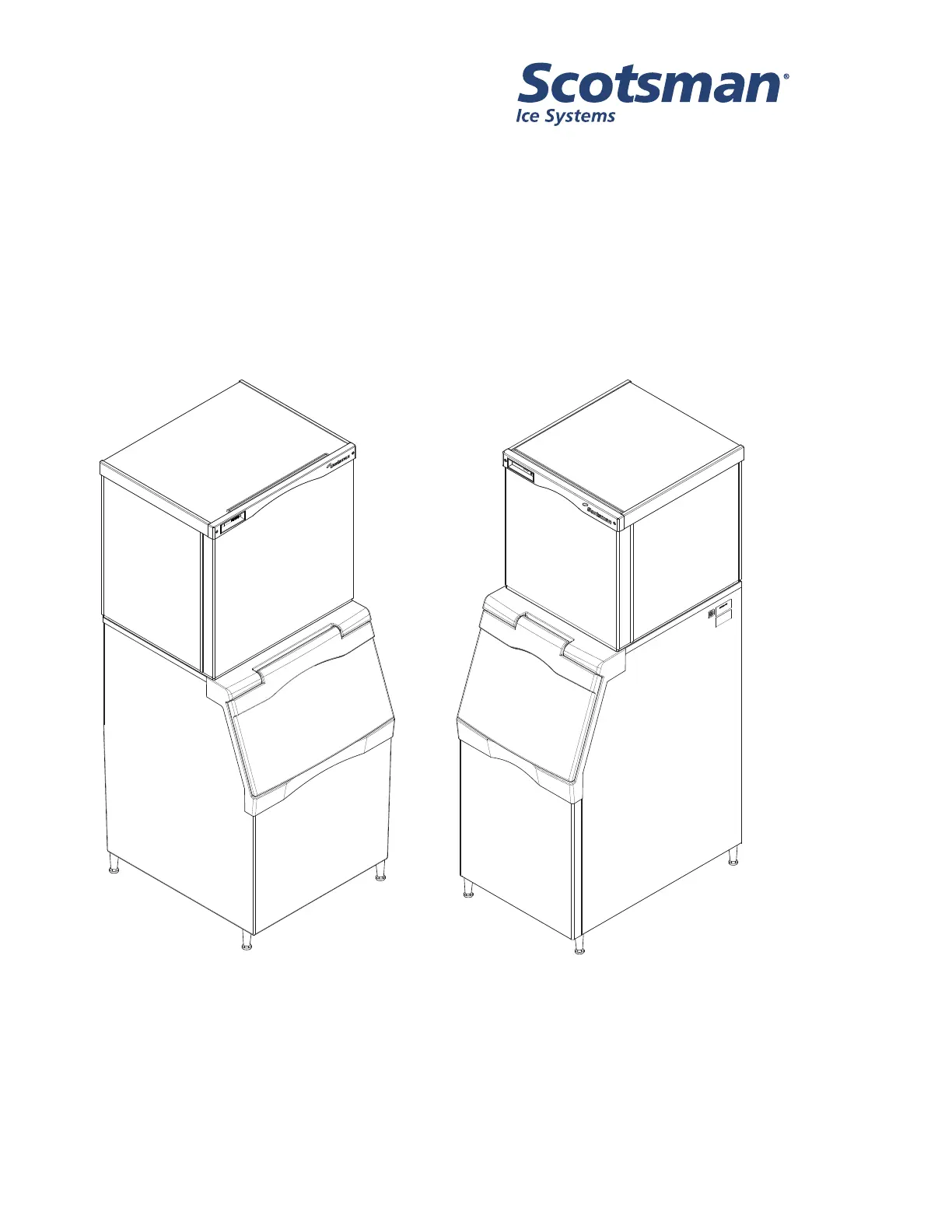

Installation and
User's Manual for
Modular Cuber
Models CB0522, CB0330, CB0530,
CB0630, CB0830 and CB1030
Prodigy Advanced Sustainability
Introduction
The design of this modular cuber is the result of
years of experience and testing. Standard features
include front accessible indicator lights and on-off
switches that provide the user with fast access to
critical information and easy operational control. .
Keep this manual for future reference.
This installation and user manual is divided into
three main sections: Installation, which provides
the trade person with the information needed to set
up and install this product; Use and Operation,
which provides the user with the information to use
the product; and Maintenance, which provides the
user with the information needed keep it operating
efficiently.
Note any Caution or Warning symbols when they
appear on the product or in this manual. They
indicate potential hazards.
August 2011
Page 1
CB0522 through CB1030
Air Cooled User Manual
Table of Contents
Installation: Product Specifications ............................... Page 2
Model Number Description ................................... Page 3
Product Description & Electrical Requirements ......................... Page 4
C0522 Cabinet Layout ...................................... Page 5
C0330, C0530, C0630, C0830 and C1030 Cabinet Layout ................... Page 6
Water .............................................. Page 7
Panel Removal ......................................... Page 8
Plumbing Requirements ..................................... Page 9
Electrical ............................................. Page 10
Final Check List ......................................... Page 11
Initial Start Up .......................................... Page 12
Adjustments ........................................... Page 13
Use and Operation........................................ Page 14
Control Switches......................................... Page 15
Options ............................................. Page 16
Cleaning, Sanitation and Maintenance ............................. Page 17
Air cooled condenser filter .................................... Page 19
What to do before calling for service .............................. Page 20
Installation: Product Specifications
Location Limitations:
The product is designed to be installed indoors, in
a controlled environment. Air cooled models
discharge very warm air into the room out the back.
Space must be allowed at the left side and back for
air intake and discharge. Space needs to be
provided on both sides and above for service
access.
Space Limitations
Note: Although the machine will function, ice
capacity of air cooled machines will be significantly
reduced with minimal clearance at the sides, back
and top. Some space is recommended for service
and maintenance purposes on all models.
6" of space at the sides and back are required for
adequate operation. To get the most capacity,
locate the machine away from heat producing
appliances and heating ducts, and keep the left
side away from any wall, allow 12-18 inches of
space for good air flow
Airflow is in the left side, out the back (as viewed
from the front).
Environmental Limitations
Minimum Maximum
Air temperature 50
o
F. 100
o
F.
Water
temperature
40
o
F. 100
o
F.
Water pressure 20 psi 80 psi
Power supply – acceptable voltage ranges
Minimum Maximum
115 volt model 104 volts 126 volts
230 volt model 198 volts 253 volts
Warranty Information
The warranty statement for this product is provided
separately from this manual. Refer to it for
applicable coverage. In general warranty covers
defects in material or workmanship. It does not
cover maintenance, corrections to installations, or
situations when the machine is operated in
circumstances that exceed the limitations printed
above.
Product Information
The product is a modular cuber. That type of
machine is designed to be placed on an ice
storage bin or an ice dispenser. Many installations
only require the matching bin, but some also
require an adapter to be placed between the bin
and the cuber or between the dispenser and the
cuber. This product cannot be stacked. See the
chart for application information.
August 2011
Page 2
CB0522 through CB1030
Air Cooled User Manual

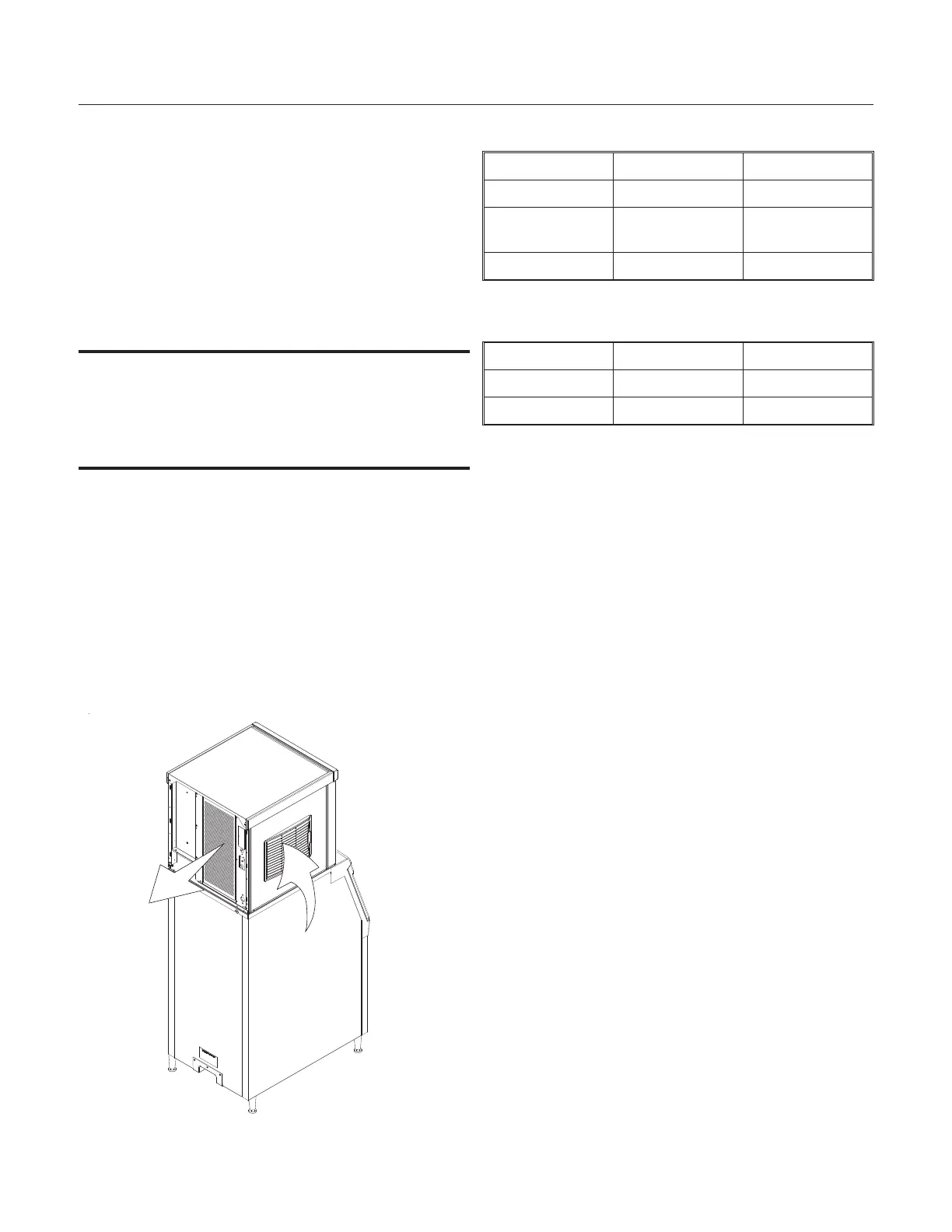

Air Flow
