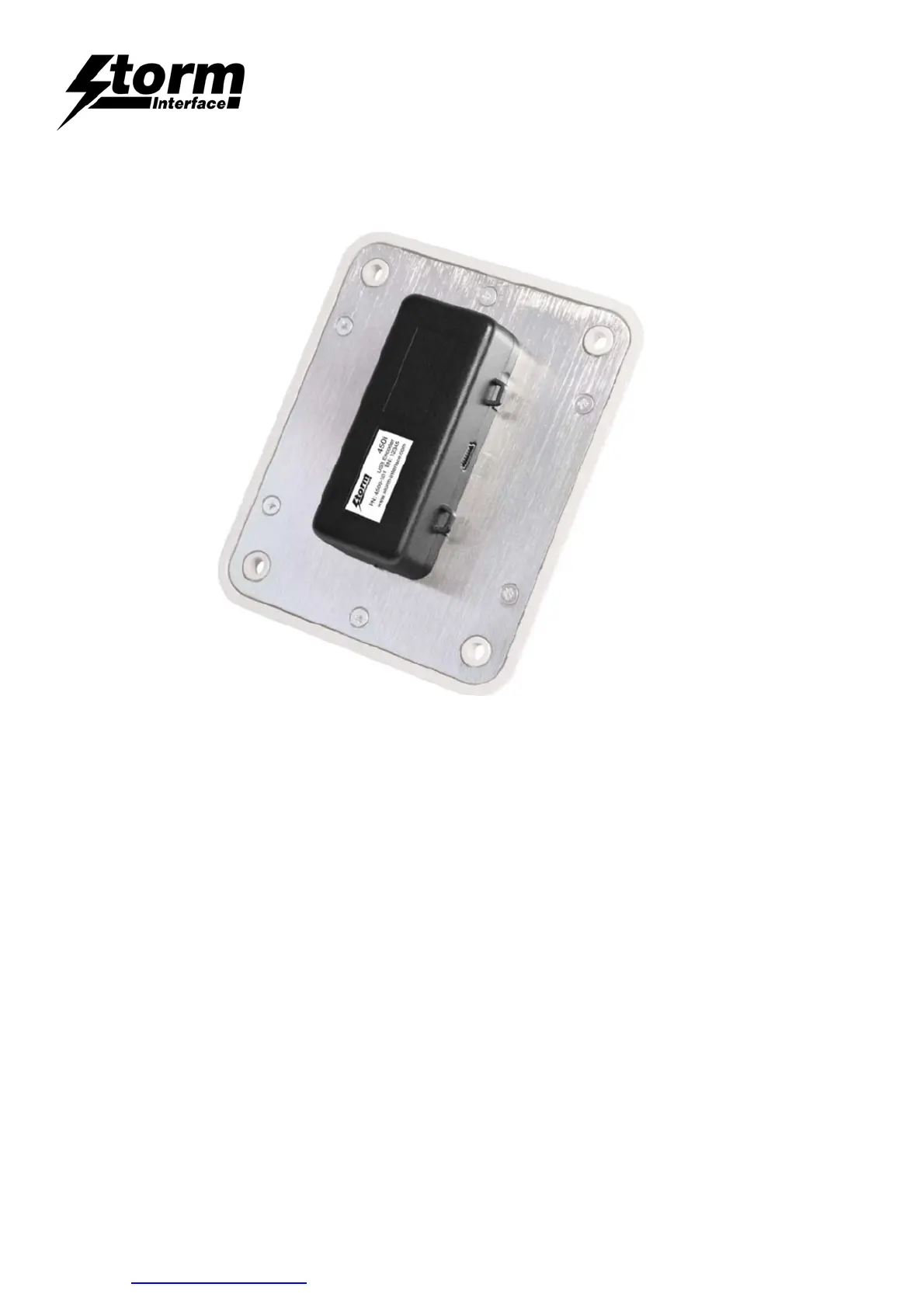

450 Series USB Encoder
Engineering Manual
www.storm-interface.com 450 Series USB Encoder Engineering Manual rev 1.5 Jun 2018 Page 1 of 48
Contents
Page
Product Overview , Features 2
Product Range and Accessories
Downloads
Quickstart Guide 3
Installation
One Time Only Initialisation
FAQ’s & Product Specs 4
Compatible Products 5
Keypad layouts 6
Code Tables – default 7
Configuration Utility 8
Customising the codes
Firmware Update
Code Tables – full list 11
Product Dimensions, Cable Drawings 18
Panel Cutout Drawings 19
Copyright Notice 24
Change History 26
API 28
450 Series USB Encoder
Engineering Manual
www.storm-interface.com 450 Series USB Encoder Engineering Manual rev 1.5 Jun 2018 Page 2 of 48
Product Overview
This self-contained device is ready to use. It can be easily attached to the rear surface of most Storm keypads to
provide connectivity and communication with USB compatible host systems. Factory configured for standard
numeric data entry, this versatile device can also be user programmed to output any supported USB code;
making the 450 Series encoder the ideal keypad interface for most applications.
Features
Generic keyboard (HID) device – no additional drivers needed
Factory configured to encode telephone or calculator format numeric keypads
Output code table can be customised using Storm’s USB Configuration Utility
Host PC can use the supplied API to control the encoder functions in an application.
Integrated power supply for keypad illumination
450i version provides additional brightness control for keypad illumination
450i version features a piezo sounder for optional key press confirmation or application driven status signal
Simple connection via a USB Mini-B socket
Compact, self contained form factor
Compatible with most Storm 4, 12 and 16 key format keypads
(including Storm 700, 720,1000, 2000, 3000, GFX and PLX product series)
Separate ribbon cable available if you do not wish to plug the encoder directly onto the rear of the keypad.
Product Range and Accessories
Part Number Description
4500-10 450i Encoder with Buzzer and Illumination Control
4500-00 450 Encoder
4500-01 USB Cable 1 metre - type A to angled mini B
4500-CAB07 Ribbon Cable 0.3 metre for remote connection to 4 way keypad
4500-CAB10 Ribbon Cable 0.3 metre for remote connection to 12/16 way keypad
Note :
These part numbers are for on line ordering directly from Storm Interface.
When bought through broadline distribution they have an additional suffix to allow for distributor specific
labelling/marking requirements e.g.
4500-102 450i Encoder with Buzzer
Downloads
4500-SW01 USB Configuration Utility
450i-LIT-01 Product Brochure
450-xx-08KT Installation Sheet
450 USB Manual Engineering Manual (this document)
450 Series USB Encoder
Engineering Manual
www.storm-interface.com 450 Series USB Encoder Engineering Manual rev 1.5 Jun 2018 Page 3 of 48
Quickstart Guide
Before starting make sure that you have :
The encoder
A compatible Storm keypad.
A USB mini-B cable between your keypad and the host computer.
A panel with the correct cutout for your keypad
A copy of the configuration utility if you want to customise the configuration
Installation
Ensure your computer is powered up before connecting the encoder.
Note that there are two different sockets for the keypad connection, depends if a 4 way or 12/16 way
keypad is being used. Make sure that the correct socket is used before using the sticky pads to fix the
encoder in place.

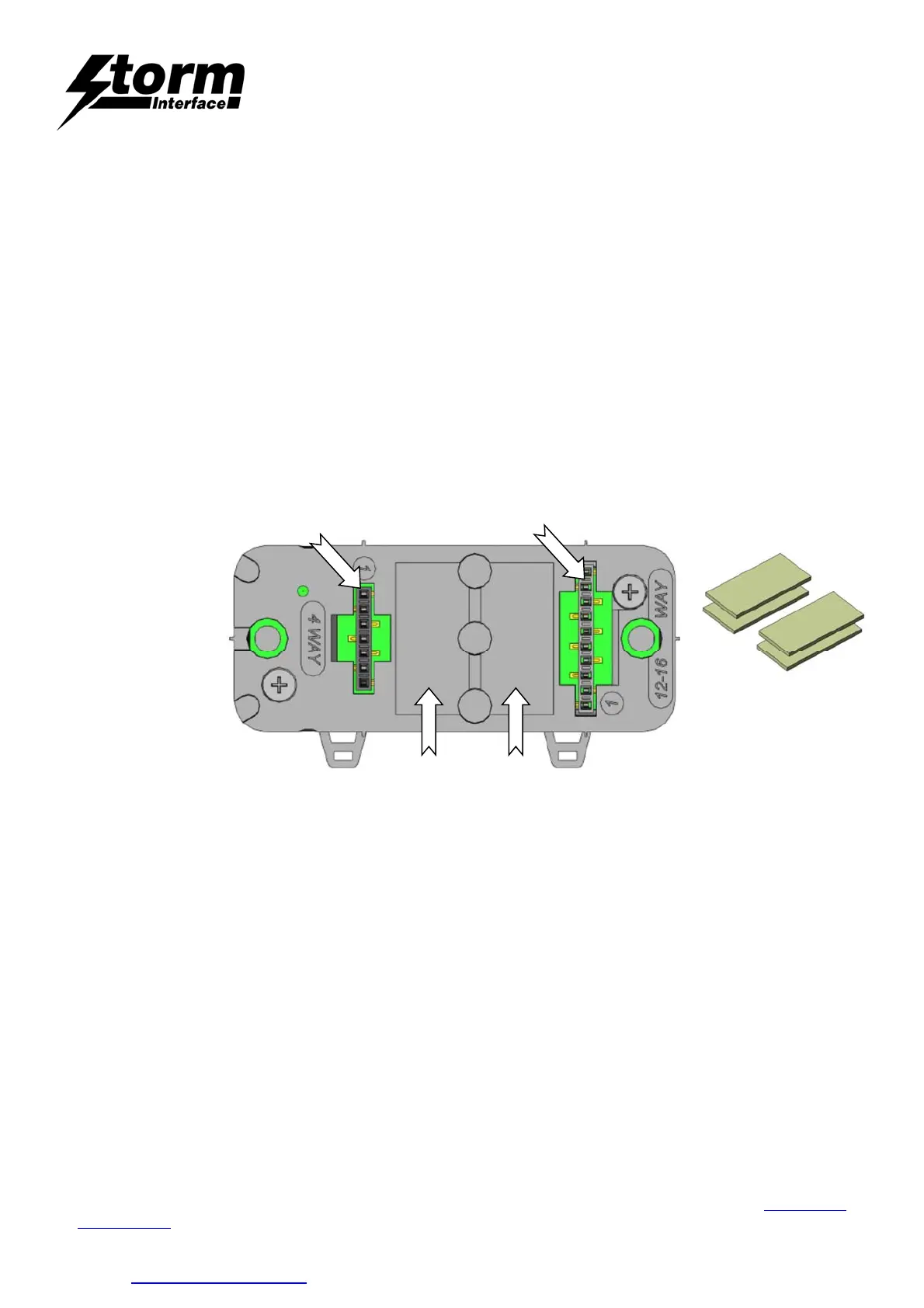

Socket for 4 way keypad Socket for 12/ 16 way keypad
Sticky pads go here
( one per position, unless using 700 Series underpanel
which needs 2 per)
Push the encoder onto the keypad pins ; make sure the pad sticks down
Plug in the mini B USB cable on the side of the encoder
One Time Only Initialisation
This initialisation process must be completed the first time you turn it on. The encoder has to recognise the
keypad, and you have to select the layout that matches the keypad layout.
a) PRESS AND HOLD the bottom right hand key on the keypad – this tells the encoder which keypad is connected
b) Connect the encoder cable to the pc
c) RELEASE KEY IF you want function key ( 4 way) / telephone layout (12/16 way) code table
or
d) KEEP THE KEY PRESSED FOR 10 SEC IF you want cursor ( 4 way) / calculator ( 12/16 way) code table
Now check that you are getting the correct characters on screen. If you need to reconfigure the encoder you can
change the code table ( or reset to a pre-loaded code table ) with the USB Configuration Utility from www.storm-
interface.com
