Strona 1/8

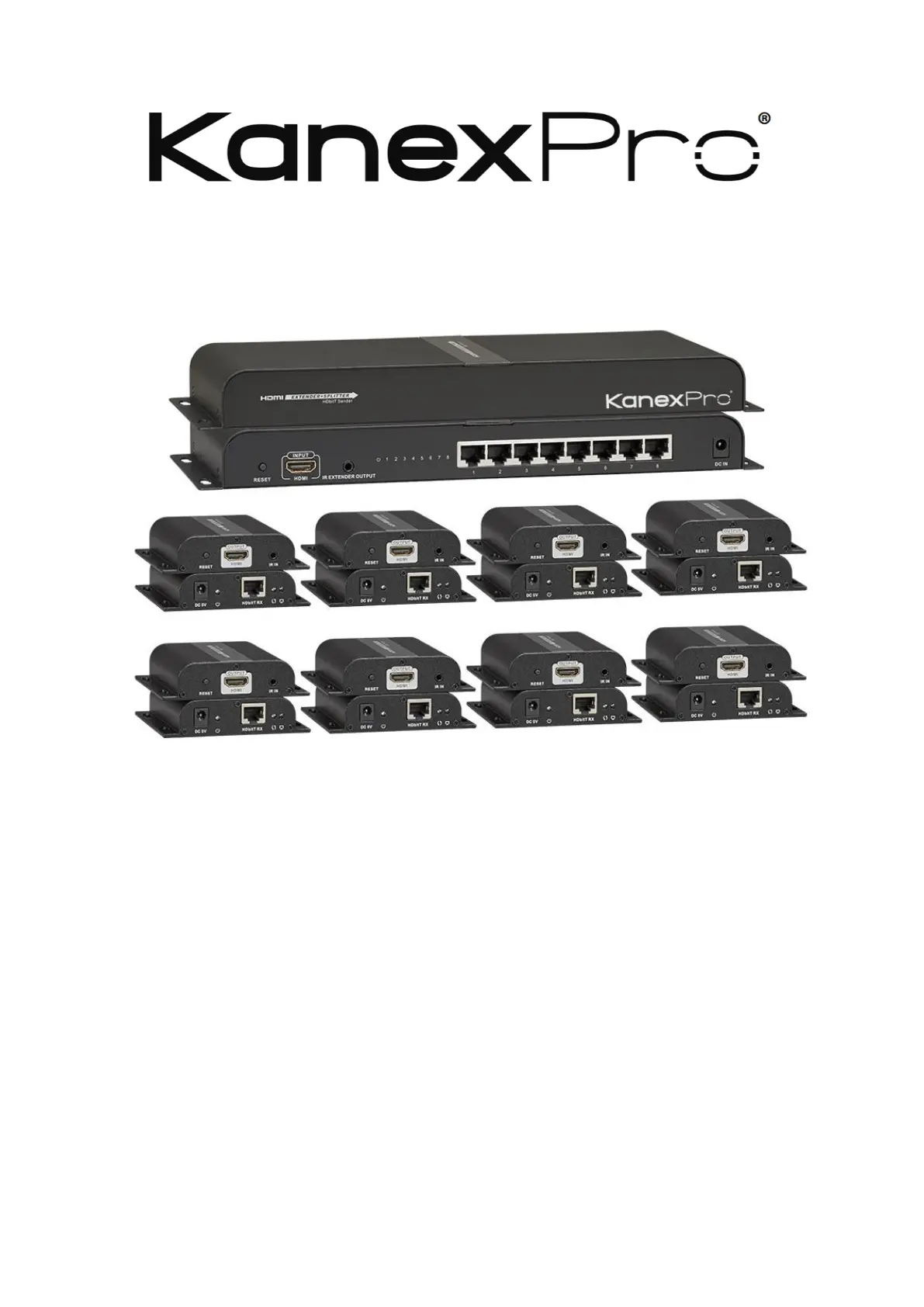

SP-HDCAT1X8

HDMI 1x8 Distribution Amplifier w/ CAT5e/6 outputs

up to 394ft. (120 meters)

USER MANUAL

-HDCAT1X8 SP

1 | P a g e

TABLE OF CONTENT

INTRODUCTION ................................................................................................................... 2

APPLICATIONS ..................................................................................................................... 2

FEATURES 2 ............................................................................................................................

IMPORTANT SAFETY NOT ES ................................................................................................. 2

PACKAGE CONTENT ............................................................................................................. 3

INSTALLATION REQUIREMENTS ............................................................................................ 3

PANEL DESCRIPTION ............................................................................................................ 4

CONNECTION AND OPERATION ............................................................................................ 4

▪ 1) Network Cable

▪ 2) Connection

CONNECTION INSTRUCTI ON................................................................................................ 4

FAQ 5 .....................................................................................................................................

SPECIFICATION .................................................................................................................... 5

AFTER-SALES SERVICE ........................................................................................................... 6

WARRANTY .......................................................................................................................... 7

-HDCAT1X8 SP

2 | P a g e

Introduction:

The KanexPro -HDCAT1X8 is a one transmitter and eight extenders - receiver set that enables high resolution SP

1080p HDMI signals to be routed over distances up to 394ft.(120m) significantly beyond the capability of standard

HDMI connectivity. When connected using installer friendly CAT5e/6 cables, the transmitter inputs the HDMI signal

into eight identical outputs carrying 394 ft./1080p resolution simultaneously from the provided receivers. For control

options, the 1x8 splitter comes with IR receivers for each of the receivers and provides IR pass-back function to

control the HDMI source device remotely from the displays.

This HDMI amplifier offers an ideal, cost effective means for extending digital video, multichannel audio, and control

signals using IR from HDMI equipped devices. Each receiver works with the splitter as a full functional unit enabling

full 1920 x 1080p/60 resolution. Hz

Applications:

Perfect for house of worship centers, retail stores and residential /smart home theater applications where one HDMI

device can be distributed to eight displays over a single network cable up to 394 ft. without losing signal integrity.

Important Safety Notes:

1. Do not plug-in/out the network cables and IR cables when in use.

2. Use DC12V only. Make sure that the power specification is matched if using 3rd party DC adapters.

Features:

 Support 1 HDMI input to 8 HDMI outputs (one HDMI device to 8-displays)

 Up to 120 transmission distance over single cat6 (high quality cable can reach 150meters) meters’

 Compatible with the ceiver device which supports HDBitT transport protocol re

 Compatible with HDCP1.4

 Metal housing and mountable design

 IR control inclusive

Specyfikacje produktu

Marka:	KanexPro
Kategoria:	przedłużacz AV
Model:	SP-HDCAT1X8
Kolor produktu:	Czarny
Częstotliwość wejściowa AC:	50 - 60 Hz
Napięcie wejściowe AC:	100-240 V
Wysokość produktu:	29.6 mm
Szerokość produktu:	299 mm
Głębokość produktu:	110.7 mm
Technologia łączności:	Przewodowa
Certyfikaty:	FCC, CE, UL
Gniazdko wyjścia DC:	Tak
Napięcie pracy:	12 V
Zakres temperatur (eksploatacja):	0 - 60 °C
Kanały wyjścia audio:	7.1 kan.
Pobór mocy:	24 W
Diody LED:	Status
Model:	Nadajnik i odbiornik AV
Prąd wyjściowy:	3 A
Prąd wejściowy:	0.3 A
Maks. rozdzielczość:	1920 x 1080 px
Maksymalna częstotliwość odświeżania:	60 Hz
HDCP:	Tak
Maksymalny dystans transferu:	120 m
HDMI in:	1
Obsługiwane tryby wideo:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Wersja HDCP:	1.4
Montaż naścienny / rzutowanie na sufit:	Tak
Wymiary odbiornika (S x G x W):	96.8 x 94 x 23.7 mm
Obsługiwane typy kabli:	Cat5e, Cat6
Wejścia RJ-45:	1
Wyjścia RJ-45:	8
Rozszerzone dane identyfikacyjne wyświetlacza (EDID):	Tak
