Main Features

Channel Switch Pedal

A/B/Y Jack: 1/4 monaural jack ”

Power Requirements: AC adapter 9V DC (center minus plug), can

work without power (LED doesn’t work). Recommended to use Mooer

Micro Power

Current Draw: 8 mA

Dimensions: 93.5mm (D) 42mm (W) × × 52mm (H)

Weight: 145g

Accessories: Owner’s Manual

* Disclaimer: Any specification’s update won't be amended in this manual.

The comprehensive channel switch pedal, can switch the one way

signal to two different outputs, applicable for the circuit of instrument,

amplifier, speaker (be sure to use speaker cable) and pedalboard

The design of mode-choosing switch, which enables A, B channels

transfer from respectively to simultaneously

In both modes, ABY can be used in both positive and negative directions,

the signal path can flow from A/B to Y, or from Y to A/B

Can work without power supply (LED will not light up)

Full metal shell

Very small and compact design

True bypass switch

DC 9V adapter power supply

A/B Mode: Y(instrument) A/B(amplifier A / amplifier B), stepped →

on the foot switch to select the amplifier

A / BY(A &B)

A:R ED

B:B LUE

Y:PI NK

A(instrument A)/B(instrument B) Y(amplifier) Stepped →

on the foot switch to select the instrument

A / BY(A &B)

A:R ED

B:B LUE

Y:PI NK

A&B Mode: In this mode, can connect any A, B, Y connector according

to personal demand

1. CHANNEL SELECT Footswitch:

Push down the footswitch to toggle

between channel A and channel B

(in A&B mode, footswitch is invalid).

3. LED Light:

4. DC IN Power Jack:

5. A Jack:

1/4” mono audio jack, connect instruments

or speakers and other devices.

In A/B mode, indicates in A channel

or B channel; the red lights mean in

A channel, the blue lights mean in B

channel; In A&B mode, LED lights

turn into pink.

A / BY(A&B)

A:RED

B:BLUE

Y:PINK

6

52

4

7

3

2. MODE SELECT Switch:

Select A/B mode or A&B mode.

For power supply, use a 9-volt

DC regulated AC adapter (plug

polarity is positive on the barrel

and negative in the center).

6. B Jack:

1/4” mono audio jack, connect instruments

or speakers and other devices.

7. Y Jack: 1/4mono audio jack, connect instruments or speakers and other ”

devices.

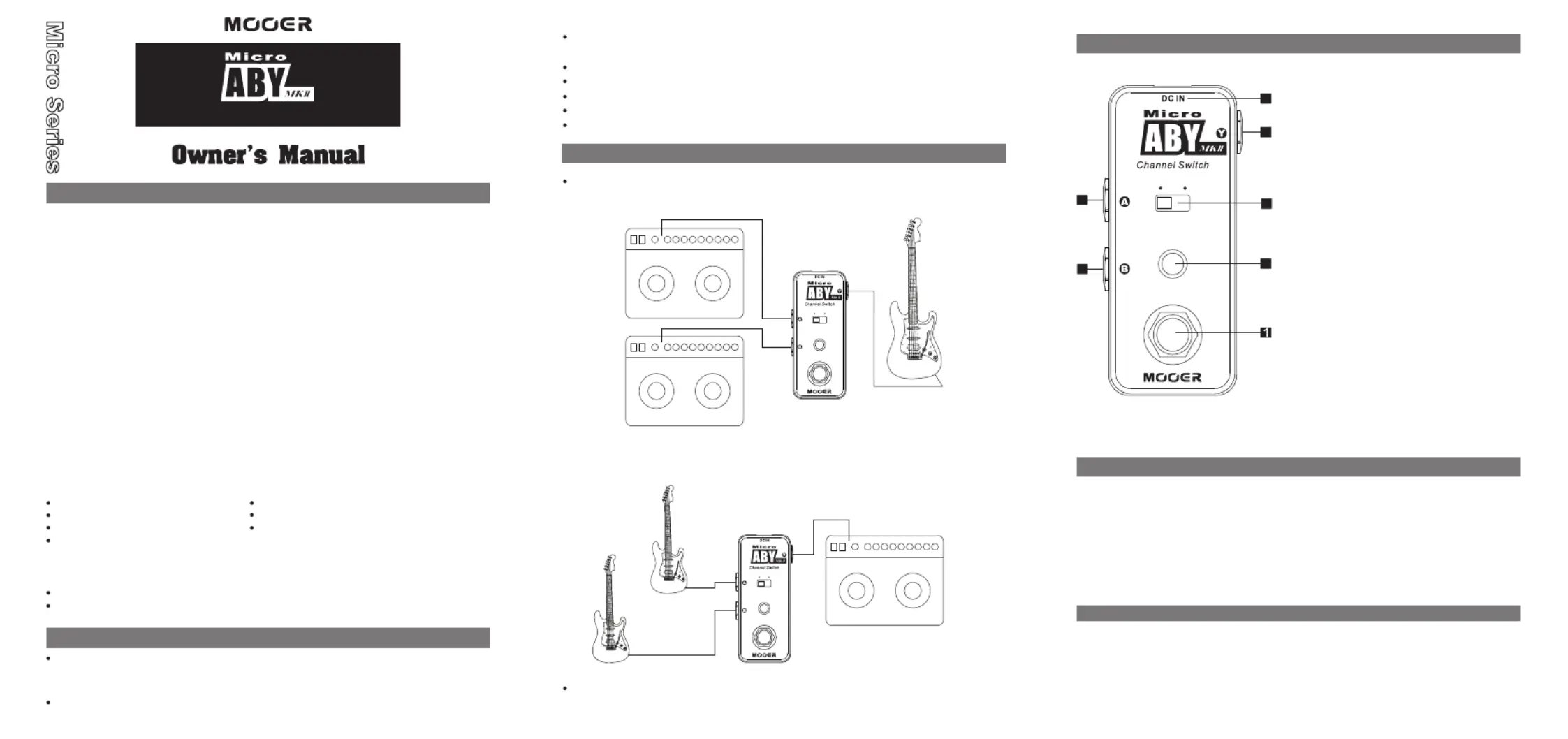

Diagrams

Panel Instruction

Specification

PLEASE READ CAREFULLY BEFORE PROCEEDING

Power Supply

Connections

Always turn off the power of this and all other equipment before connecting or

disconnecting, this will help prevent malfunction and / or damage to other devices.

Also make sure to disconnect all connection cables and the power cord before

moving this unit.

Cleaning

Clean only with a soft, dry cloth. If necessary, slightly moisten the cloth.

Do not use abrasive cleanser, cleaning alcohol, paint thinners, wax, solvents,

cleaning fluids, or chemical-impregnated wiping cloths.

Interference with other electrical devices

Radios and televisions placed nearby may experience reception interference.

Operate this unit at a suitable distance from radios and televisions.

Location

To avoid deformation, discoloration, or other serious damage, do not expose

this unit to the following conditions:

Direct sunlightHeat sources

Magnetic fieldsExtreme temperature or humidity

Excessive dusty or dirty locationHigh humidity or moisture

Strong vibrations or shocks

Please connect the designated AC adapter to an AC outlet of the correct voltage.

Please be sure to use only an AC adapter which supplies 9V (±10%) DC, center

minus. The maximum working voltage shall not exceed 12V, otherwise may be

dangerous equipment damage, fire or other problems.

Unplug the AC power adapter when not using or during electrical storms.

Precautions

FCC certification

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, including interference

that may cause undesired operation.
